It's nice to have the proper gear for the
 job, isn't it...
Walk softly and carry a big banjo...

""quid statis aspicientes in infernum"

“WHAT?! N0!!! NOT THAT Button!!!”

Mechanism Man

  • Zeppelin Captain
  • *****
  • Posts: 440
Re: Antikythera Mechanism Build.
« Reply #78 on: August 10, 2015, 09:28:37 pm »
I will do Maets, and thanks Herr Doktor!
The gears themselves are all cut on my trusty beat up old scroll saw - it's quite relaxing and very time consuming, but you avoid the horrible blackened burnt edges that you get with laser cutting. There are 48 gears here (some were cut doubled up where possible) and it's taken about 2 weeks of part time whittling to get this far. The finished machine has to be in New York for September 25th - no pressure then...
Oh well,  it's Thorpe Park and roller coaster riding all day tomorrow with my daughter and then back at it on Wednesday all day - can't wait!
More soon.
:-)
Sometimes, I think that the surest sign that intelligent life exists elsewhere in the universe, is that none of it has ever tried to contact us...
Calvin and Hobbs.

Mechanism Man

  • Zeppelin Captain
  • *****
  • Posts: 440
Re: Antikythera Mechanism Build.
« Reply #79 on: August 13, 2015, 08:18:25 pm »

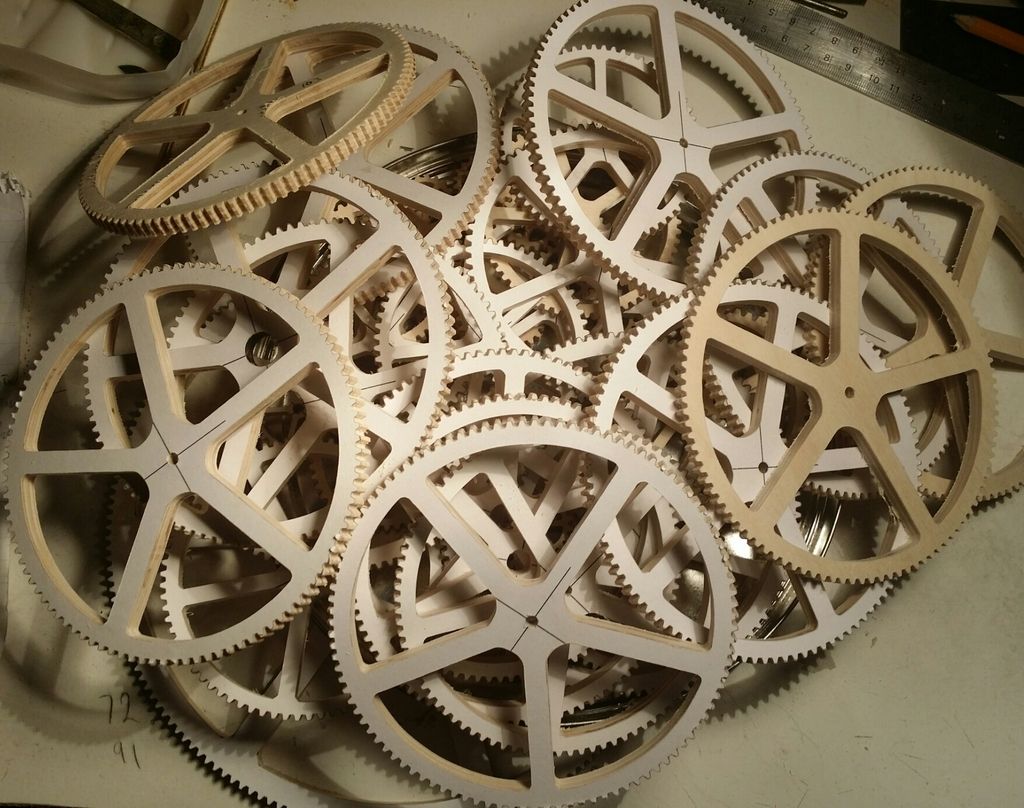

Hooray! All the hard work is now done - all the gearing is now cut, with the last few spoke holes finished about 10 minutes ago. All that's left is sanding and varnishing to finish them off and then it's time to cut the frames.
The gear cutting is by far and away the longest job, but if you take a bit of time with it and get it right then the rest of the machine goes together so much more easily.
More soon.
:-)

« Last Edit: August 13, 2015, 09:46:45 pm by Mechanism Man »

Drew P

  • Zeppelin Admiral
  • ******
  • Posts: 3211
Re: Antikythera Mechanism Build.
« Reply #80 on: August 14, 2015, 02:53:35 am »



.........wow......



Never ask 'Why?'
Always ask 'Why not!?'

Mechanism Man

  • Zeppelin Captain
  • *****
  • Posts: 440
Re: Antikythera Mechanism Build.
« Reply #81 on: August 22, 2015, 04:09:24 pm »

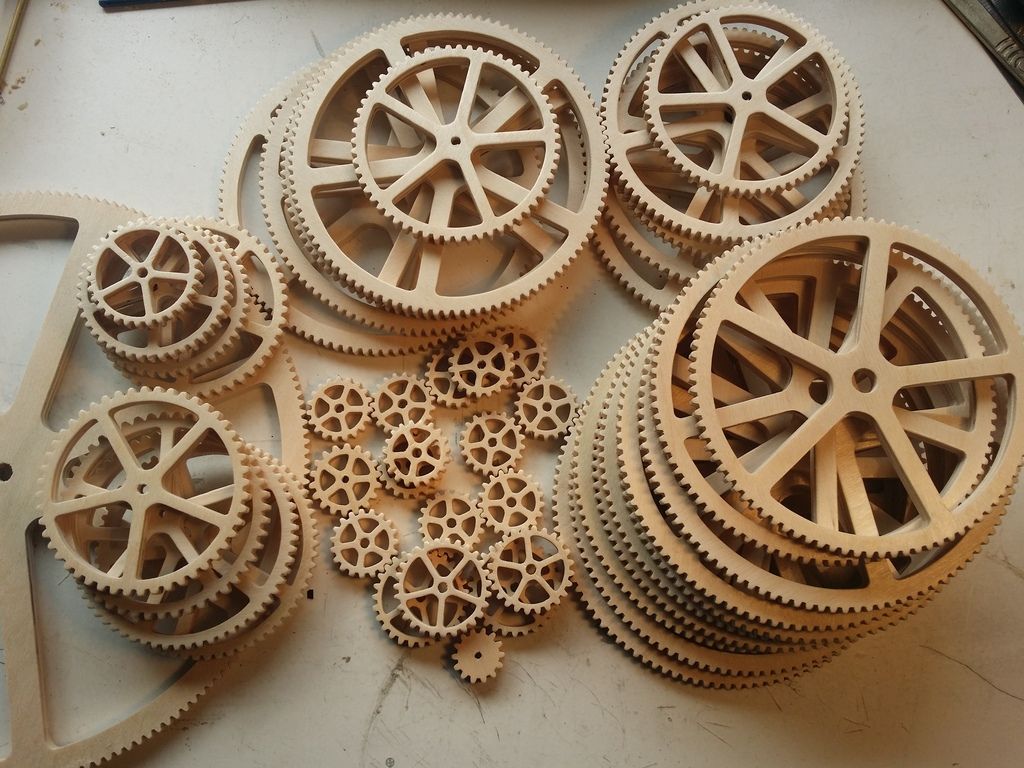

Gearing finished and ready to fit - thought I was never going to get there.
Now time for the frames. :-)


Mechanism Man

  • Zeppelin Captain
  • *****
  • Posts: 440
Re: Antikythera Mechanism Build.
« Reply #82 on: September 01, 2015, 09:33:27 pm »

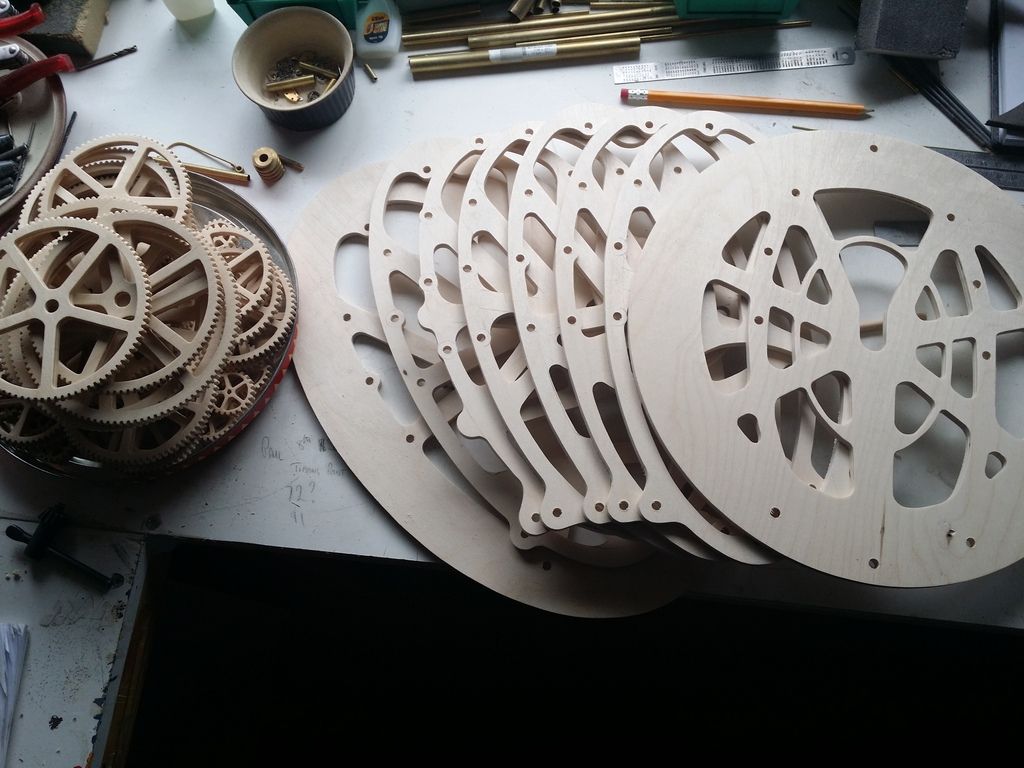

We have gears, and as of last night we have frames - must be time for a bit of assembly at last!
:-)


Drew P

  • Zeppelin Admiral
  • ******
  • Posts: 3211
Re: Antikythera Mechanism Build.
« Reply #83 on: September 01, 2015, 11:03:31 pm »
 :)

Banfili

  • Zeppelin Admiral
  • ******
  • Posts: 2372
Re: Antikythera Mechanism Build.
« Reply #84 on: September 01, 2015, 11:08:15 pm »
Waiting, waiting . . . patiently!

frances

  • Zeppelin Captain
  • *****
  • Posts: 1650
Re: Antikythera Mechanism Build.
« Reply #85 on: September 02, 2015, 10:42:43 pm »
gulp!

Mechanism Man

  • Zeppelin Captain
  • *****
  • Posts: 440
Re: Antikythera Mechanism Build.
« Reply #86 on: September 08, 2015, 11:59:27 am »

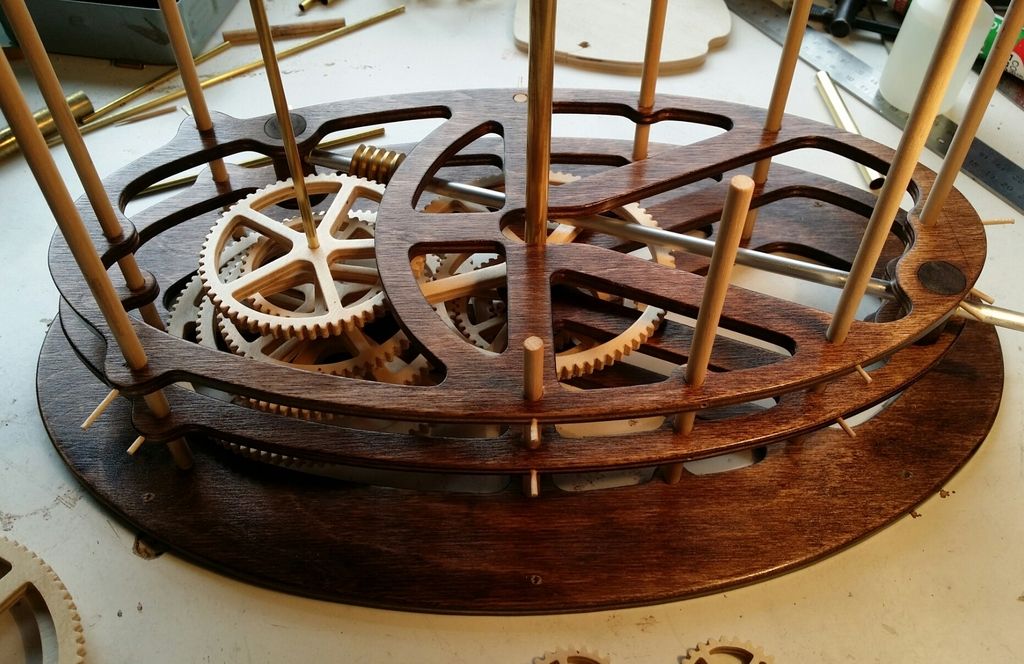

Well it's finally growing. Progress from here on in is usually quite quick, which is lucky, as it has to be finished by the 20th. Yes Frances - Gulp...
Anyhow, so far so good.


Maets

  • Hero of The Realm
  • Immortal
  • *
  • Posts: 6382
  • Airship Builder
    • The Steam Emporium
Re: Antikythera Mechanism Build.
« Reply #87 on: September 08, 2015, 12:56:01 pm »
A twinge of excitement when a new entry appeared from you as an unread post.  Couldn't wait to click and see the next step.  Looking GOOD.

Mechanism Man

  • Zeppelin Captain
  • *****
  • Posts: 440
Re: Antikythera Mechanism Build.
« Reply #88 on: September 08, 2015, 01:19:23 pm »
Thanks Maets - I can't remember the last time I gave anybody a twinge of excitement!

Mechanism Man

  • Zeppelin Captain
  • *****
  • Posts: 440
Re: Antikythera Mechanism Build.
« Reply #89 on: September 08, 2015, 10:36:45 pm »

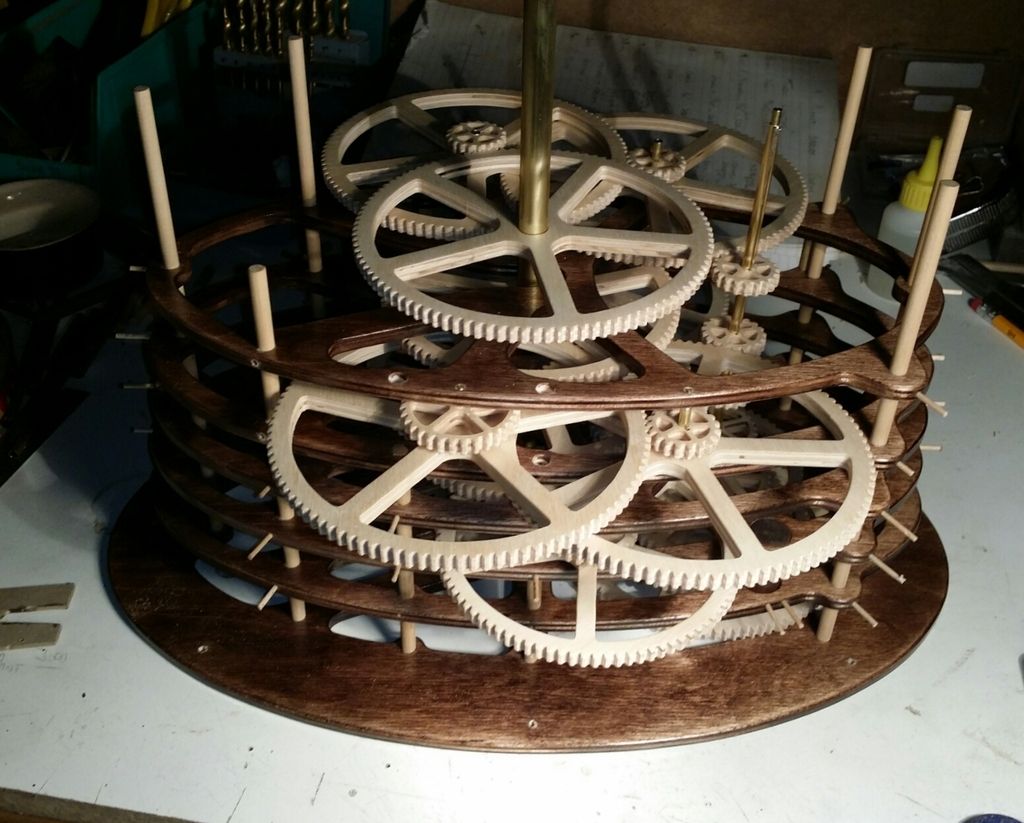

Great progress today, just hope that it continues!


Maets

  • Hero of The Realm
  • Immortal
  • *
  • Posts: 6382
  • Airship Builder
    • The Steam Emporium
Re: Antikythera Mechanism Build.
« Reply #90 on: September 08, 2015, 10:55:17 pm »
At my age, any excitement I can get is good.  ;D

Probably the precision in your work that is so intriguing.

SeVeNeVeS

  • Master Tinkerer
  • ***
  • Posts: 1639
  • Ƹ̵̡Ӝ̵̨̄Ʒ Ƹ̵̡Ӝ̵̨̄Ʒ
Re: Antikythera Mechanism Build.
« Reply #91 on: September 10, 2015, 11:40:26 am »
I have to echo the previous comment........ WOW!

Handcrafted precision at its very best!

Mechanism Man

  • Zeppelin Captain
  • *****
  • Posts: 440
Re: Antikythera Mechanism Build.
« Reply #92 on: September 14, 2015, 06:43:06 pm »
The gear box is finished! I finally got the lid on late last night - there is still a lot to do, but that's a big hurdle out of the way.
Top mechanism next, and 8 days till the deadline. Gulp.














More soon.
:-)
« Last Edit: September 17, 2015, 06:41:19 am by Mechanism Man »

GCCC

  • Zeppelin Admiral
  • ******
  • Posts: 2097
Re: Antikythera Mechanism Build.
« Reply #93 on: September 14, 2015, 07:10:56 pm »
Just...wow.

Prof. Cecily

  • Snr. Officer
  • ****
  • Posts: 631
Re: Antikythera Mechanism Build.
« Reply #94 on: September 15, 2015, 10:14:38 am »
Good afternoon, ladies and gentlemen.
So impressive. I'm quite certain your project shall receive the admiration it deserves in the exhibition!

I remain yours,
Prof. Cecily

Banfili

  • Zeppelin Admiral
  • ******
  • Posts: 2372
Re: Antikythera Mechanism Build.
« Reply #95 on: September 15, 2015, 01:20:32 pm »
Oh...... my .....word!
Hell's flaming, brazen hinges that is a job and a half!  :o

Mechanism Man

  • Zeppelin Captain
  • *****
  • Posts: 440
Re: Antikythera Mechanism Build.
« Reply #96 on: September 26, 2015, 06:31:38 am »

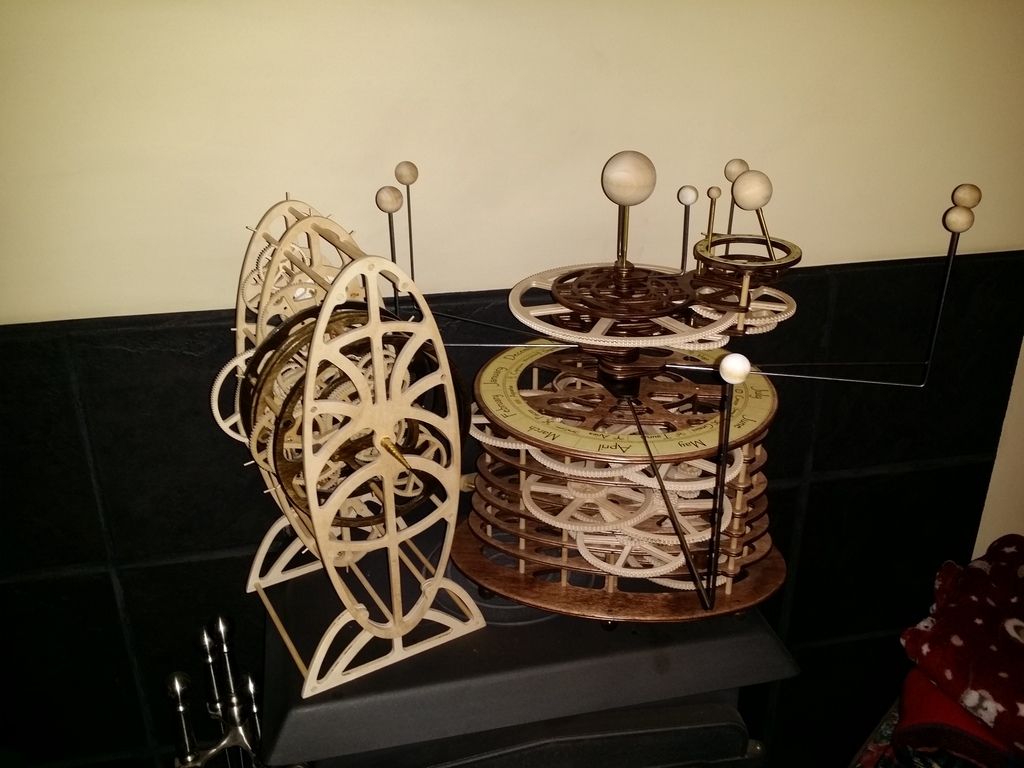

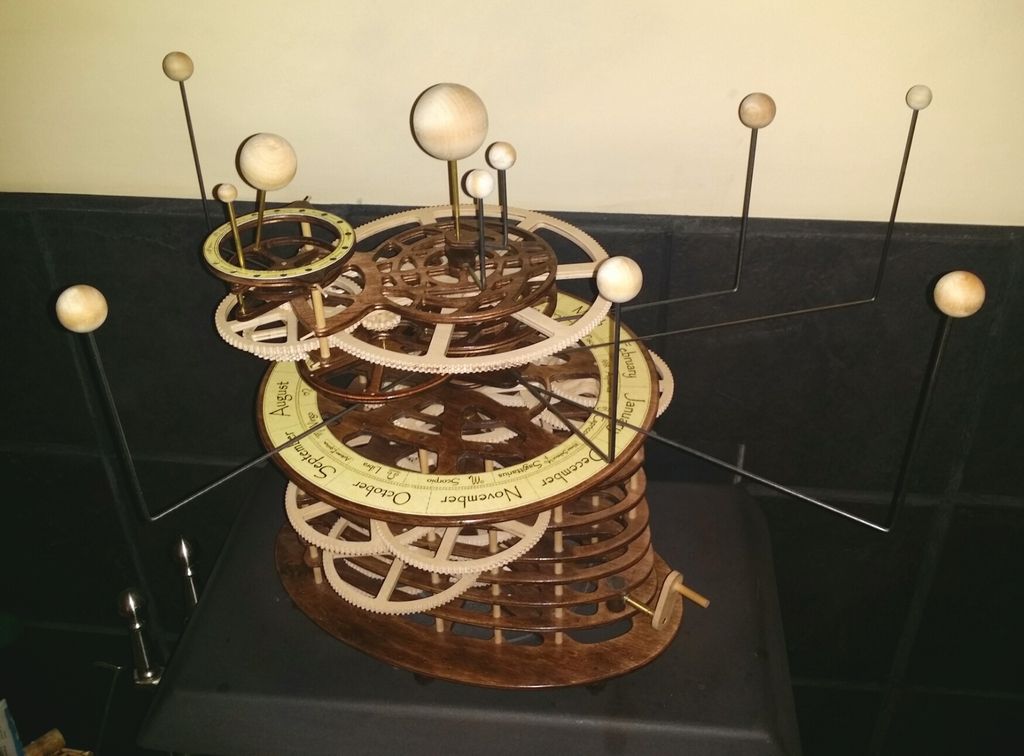

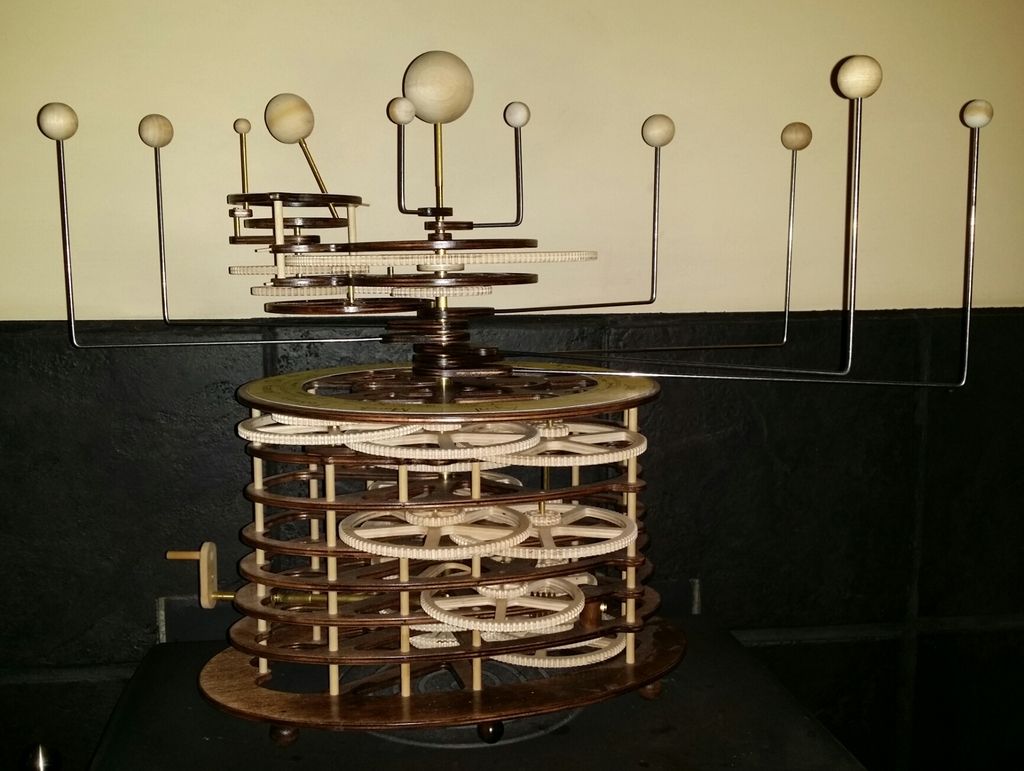

Finished! No planet decorating on this one thank goodness, so it's now ready to hey boxed and shipped. The photos actually show it just before I replaced the winding handle for something nicer, and there were still a couple of fixing pins to trim from the top mechanism, but other than that, here's the finished article.
Right, back to the reason for starting the thread I guess! Can't wait.
:-)









:-)
