Author Topic: A Victorian Boombox ~{Update}~  (Read 8399 times)
J. Wilhelm
╬ Admiral und Luftschiffengel ╬
Board Moderator
Immortal
**
United States United States


Sentisne fortunatum punkus? Veni. Diem meum comple


WWW
« on: December 24, 2010, 12:45:07 am »

Dear Ladies and Gentlemen:

For your perusal, I start a new thread on the construction of the first Neo-Victorian Boombox (that I know of).  Dedicated to those of you who never knew that in his youth, President Abraham Lincoln was heavily involved in the Breakdancing scene.

For starters, let me say this project grew right out of poverty, with a couple of old computer systems donated by a family member, for me to sell on Craigslist.  Among the two systems I had a pair of Altec Lansing ACS 340 amplified speakers (http://www.impactcomputers.com/acs340-2.html), with a central subwoofer and a pair of satellite speakers.  I sold one of the systems for a measly $20, and after a month I decided that it was a waste of time, and I kept the other pair.

As you can see the system was, to be perfectly frank ugly and downright aberrant for us Neo-Victorians, so I set myself to the job of modifying the system.  One good day as I was walking through the local hardware store, I saw a pair of discontinued aluminum lamps on sale.  I could not believe my eyes as these looked exactly like small versions of a Victrola horn.  I had been looking for an antique Victrola horn for a very long time, but my financial condition prevents me from making that kind of a purchase.  As poor as I am, I purchased the pair, and you can see the result here:





By the way, this contraption is so big, that I had a really hard time taking the photos.  The morning glare kept turning the brown felt you see a shade of blue!  I had to find an angle to avoid the glare, which explains the odd composition in my pictures.

As you can see, the subwoofer became the body of the boombox, and the two lamps were fitted with the two satellite speakers which  I opted not to extract from their cases, because  I didn't want to ruin the acoustics.  My idea is to use a brass grille of sorts over the square speaker enclosures, if I can get it.  As an aside, I'm being "egged-on" by the Mexican Steampunk forum to extract the satellite speakers from their cases and get rid of the squarish grills (actually these are "pyramid" shaped speaker enclosures), but being an engineer, and actually knowing some science of acoustics academically, I know I'll have to match the enclosure volume to maintain the acoustic impedance of the speakers -- if I want to preserve the same frequency response, that is.  These are "suspension-type" speakers, (i.e. sealed boxes, there is no resonance port), so I'd just have to match the volume and seal the cable conduit.  I'm thinking about it, but I'm just being lazy.  Right now as it is, the system sounds awesome  Smiley

Since I don't have a lot of money, I opted to wrap the white Formica with chocolate brown felt (about $1.60 USD !!).  The felt already has a stamped Victorianesque pattern.  Since the felt didn't cover the whole area, I went to the hardware shop, and bought two wooden mouldings just to cover the edges of the box.  That turned out to be the right thing to do.  I used industrial Latex-based glue (again what I had at hand Wink ) to attach all the felt and moulding, and the felt absorbed all the moisture, so the glue cured very quickly and all is rock-solid to the touch.




The rest of the assembly was very easy, because the subwoofer is made from particle board, and you can screw anything you want on top of it.  I painted and screwed one of the two satellite speaker bases on top of the box, because this houses the on-off button, tonal and volume controls.  I'm looking for something to cover the hole on top maybe a cabochon or cameo of some type?  Wink  As a handle, I bought a wrought-iron one at a swap meet for $2.70 USD.  The only thing I still don't like is the gray shoelaces that I used to run the wires through, as my intention was to give it the "olde-tyme" look.  I could use copper pipes or even brass-braided hoses (for washing machines), but that's an expense I'm thinking about (seriously folks, I have to think twice about spending even $5.00  Embarrassed )  That white cable you see has six conductors needed for the tonal control.  I will definitely cover that with at least a copper pipe, but the brass braided hoses look mighty fine to me  Wink  Aaargh!  I need a little more money.

As it is, the contraption is working and sounds absolutely fabulous when I connect it to my PC or my iPod.  The idea is to add more to the boombox in terms  of aesthetics and functionality, like gauges, volt meters, manometers, why not?  Wink Right now I'm trying to recycle and integrate to it another trinket I have:  an old Kingston K-PEX 100 mp3 player (http://www.legitreviews.com/article/448/1/ ).   The battery is dead, and I lost the proprietary USB cable to hook it to the computer (mini USB type "B" but with NON-standard wiring  Embarrassed I'm writing Kingston for a new one).  But the device still looks very new, has fabulous sound, FM radio and 2GB of memory with a very sharp and bright (but small) screen.  So far, I've hooked two leads to the mainboard feeding 5V. from a USB port, and it works fine, the impedance an excellent match.  It's really begging me to integrate it into the system...

If I go a little crazy, I may even incorporate a mini plasma disk like this one: http://www.entertainmentearth.com/prodinfo.asp?number=CY2067 or this one http://www.fatbraintoys.com/toy_companies/can_you_imagine/lumin_disk_6_inch.cfm

So ladies and gentlemen, I am open to suggestions.  I will try to finish the project soon, but unfortunately it was impossible before Christmas, and it may not be possible before new-year's, depending on money issues.  So I bid you adieu for now, wish you a Merry Christmas, and leave you these photos for your perusal.

Your humble servant,

J. Wilhelm   0_Q


EDIT: This post was heavily edited because a number of photos were lost in time. Inexplicably as well I may have some missing posts in this thread. For continuity purposes I redacted a few paragraphs and used original photos on a new server to match the original post as closely as possible while still making sense.
« Last Edit: October 17, 2018, 07:50:12 am by J. Wilhelm » Logged

elShoggotho
Guest
« Reply #1 on: December 24, 2010, 07:54:34 am »

Magical eye tube as equalizer. Might take some heavy soldering, but so worth it. Alternatively, voltmeters in the same role.
Logged
von Corax
Squire of the Lambda Calculus
Moderator
Immortal
*
Canada Canada

Prof. Darwin Prætorius von Corax


« Reply #2 on: December 24, 2010, 08:06:36 am »

I agree the grey shoelaces don't quite work, but even just replacing them with dark brown or black laces (and doing the same to the main cable) should look good.
Logged

By the power of caffeine do I set my mind in motion
By the Beans of Life do my thoughts acquire speed
My hands acquire a shaking
The shaking becomes a warning
By the power of caffeine do I set my mind in motion
The Leverkusen Institute of Paleocybernetics is 5838 km from Reading
Dr von Zarkov
Zeppelin Captain
*****
United States United States


<Maddest Scientist>


« Reply #3 on: December 24, 2010, 04:27:46 pm »

Coiled shoe laces may do the trick. They are sold at W*Mart and other big-box merchandisers and are inexpensive. We quite fancy coiled electric cords on Victorian era appliances.

Click to Enlarge:

Logged

"The fact that I wear the protective coloration of sedate citizenship is a ruse of the fox — I learned it long ago."
– Loren Eiseley
Dr von Zarkov
Zeppelin Captain
*****
United States United States


<Maddest Scientist>


« Reply #4 on: December 24, 2010, 04:35:29 pm »

Magical eye tube as equalizer. Might take some heavy soldering, but so worth it. Alternatively, voltmeters in the same role.

Magic eye or cat's eye tubes rule!

http://antiqueradio.org/magiceye.htm
http://www.vacuumtube.com/eyetubes.htm
http://www.akh.se/tubes/eyes.htm
http://home.pacbell.net/philbert/tuning_eye/tun_eye.htm
Logged
markf
Goggleologist
*****
United States United States



WWW
« Reply #5 on: December 24, 2010, 05:12:27 pm »

The lamp as a speaker horn was an excellent out of the box thinking innovation, really good stuff. markf
Logged

US ARMY-WORKING HARDER, NOT SMARTER. Steampunk Smart Car & Office Cubicle, Levitating Mossarium, Dive Pocket Watch; 1915 Wilson Goggles/Swing-Arm Monocular; Boiling Tube Lamp; Pocket Watch/Cell Phone; Air Kraken Augmentotron. http://sites.google.com/site/steampunkretrofuturedesignsmd
J. Wilhelm
╬ Admiral und Luftschiffengel ╬
Board Moderator
Immortal
**
United States United States


Sentisne fortunatum punkus? Veni. Diem meum comple


WWW
« Reply #6 on: December 25, 2010, 12:26:12 am »

Thank you, Gentlemen for you comments, I see great potential here, and it's just a matter of resources.  By the way let me wish you all a Merry Christmas and/or Happy Holidays.

Magical eye tube as equalizer. Might take some heavy soldering, but so worth it. Alternatively, voltmeters in the same role.


Now there's an idea.  I think I saw a website that sold one!  If I can't get one, I may try to simulate one with more modern technology (using LEDs and such, as long as I can modulate the light (I know how to build a light bar LED voltmeter).  I think the voltmeters in one way or another, will be there in any case, as I am a pathological audiophile.

I agree the grey shoelaces don't quite work, but even just replacing them with dark brown or black laces (and doing the same to the main cable) should look good.

Coiled shoe laces may do the trick. They are sold at W*Mart and other big-box merchandisers and are inexpensive. We quite fancy coiled electric cords on Victorian era appliances.

Click to Enlarge:




There you go!  I may look for those after Xmas.  I didn't know coiled shoelaces existed.

The lamp as a speaker horn was an excellent out of the box thinking innovation, really good stuff. markf


Thank you, Mark.  Yeah, the lamps, that was a message from *above* wasn't it?  I simply had to buy them.  There were only 5 of those discontinued items left.  I came back the next day and they were all gone.
Logged
Johanvonred
Deck Hand
*
Poland Poland


Chasing Sheep is Best Left to Shepherds


« Reply #7 on: January 11, 2011, 05:43:52 pm »

Waiting to see results after upgrades. I do enjoy low budget, scratch build contraptions. Thats what I do myself.
Suggestion - adding some brass plates- writtings , colors, details.Victorian contraptions were full of that.Hide or paint that plastic on the top, or put in little wooden box .

By the way, check out my stereo set. Builded from old mini HiFi  system (philips FW 850 C ) in bad condition.Therefore it costed nothing. Rest- hand made. Only budget for paint an brass plates:

<http://www.redmer.com.pl/kuba/contrap/music.htm>

Logged

plum phlogiston
Zeppelin Captain
*****
United Kingdom United Kingdom


Riding the flying anvil from Moominvalley to Spong


WWW
« Reply #8 on: January 11, 2011, 05:51:52 pm »


 Sorry, this post is of no practical help whatsoever but I just wanted you to know your boombox made me really truly laugh out loud when I saw it, it is everything I expected and so much more, utterly delightful, stunning and gorgeous. Grin
Logged
J. Wilhelm
╬ Admiral und Luftschiffengel ╬
Board Moderator
Immortal
**
United States United States


Sentisne fortunatum punkus? Veni. Diem meum comple


WWW
« Reply #9 on: February 20, 2012, 03:59:26 am »

Dear ladies and gentlemen:


I hereby necromance this thread, on account of the recent tidings regarding the Victorian Boombox project.

I must say the Boombox has turned out to be quite the prodigal son (daughter?), having been modified (see pictures below), and damaged during transit to the other side of the country Whew!  Quite an adventure and still I haven't heard the end of it yet.

This is what the boombox looked like in its first iteration V. 1.1 BEFORE I would have even considered shipping the darn thing - and I realise now I had never updated this post on those changes.  Roll Eyes

To make a long story short, the first iteration involved adding one of those cheap craft boxes to fashion a dock of sorts for my iPod. At that point it was a very simple receptacle connected to an Apple plug, Nothing else... The wires simply led to the "line" level input of the amplifier. I found some sort of "cabochon" from the local craft store, with the idea of adding a logo on top.










What I did afterwards was to replace the dreaded shoelaces with flexible lamp "necks" which I painted with Rustoleum epoxy paint. I did the same thing to the cable leading to the "dock." I then simply attempted (not very well, I confess) to paint the white cable leading to the tonal control box. I knew that the arrangement above presented a real risk of the cables being torn out by accident. And once I considered the possibility of selling the boombox (or a series of them), I realised I simply HAD to make them detachable. How would I ship it otherwise?

The lamp shades which house the midrange/twitter speakers have always been detachable, but the cables were not.  The idea was to divide the Boombox into two or three packages, and at least I can say that part of the plan went accordingly. Quite an easy feat I used 1/8" monaural phono (headphone) plugs and some epoxy to make detachable “cables."  The base of each aluminium lamp housing the mid-range speakers is unchanged save for a couple of fancy brass knurled knobs.  A nice change to the “Victrola Horns” was the addition of a wrought iron-wire grilles (actually a modified pair of candle holders I fetched at Hobby Lobby); this fixed a problem that had vexed me for a long time (how to make a nice grill).  I think the black iron is in keeping with the design, and I have heavily emphasized this with the decorative hinges at the front.






The biggest change for the Boombox happened at the front wooden box housing the iPod dock - a commercial dock capable of a sound/video output and also the power charging function. I knew that I wanted more and customers online were asking me whether I could somehow incorporate iPhone/iPod docks into my amplifiers (you got to evolve with the times...). I found a Radio Shack (Tandy Corp.) unit, with line level output composite / RCA jacks (Left/Right/ Video). While a discontinued model, this iPod dock proved to be quite elegant and versatile. So I took a larger craft box and ripped off the old wooden box, to accommodate the new setup. The new box was much bigger, but somehow it looked a lot better.


With a new larger box I was able to fit the RS dock, and preserve a hinged lid where the new "copper" bezel is mounted.  I discarded the small brass hinges and replaced it with a single large-size springed cabinet door hinge; I thought that ought to be strong enough to keep the lid in it’s “open” position.  The "bezel" is in fact a set of two wall switch plates, cut and adapted to fit a standard iPhone.  Should the Apple device not fit through the bezel, the whole lid can be raised to reveal the Radio Shack iPod dock and an elegant "upholstery" made of felt, both in cranberry/apple-red and black/white colours.


I guess I could have used an Apple cable arrangement, instead of the whole dock, but this dock featured a remote control and a smoke-coloured acrylic mounting with a spring, and it boasted universal compatibility with older iPod models. Plus you could use it as a base to charge the phone.


It is precisely this new larger wood box with the iPod dock which "took one to the chin" so to speak, during transit, coming clean-off at its base. After the mishap, I knew that glueing it back would not be enough. I needed a stronger type of attachment. Something with screws. I could not find decorative angles to reattach and reinforce the wooden box after it was returned, but I realized that there are plenty of decorative hinges that can function as angles (mechanically you don't need a rigid corner you just need to limit the degrees of freedom in x and y leaving a free rotation at the corner of the hinge -pay no mind, engineer talk).  Not shown in the pictures is a set of black steel hinges, same as the black decorative pair shown flanking the copper bezel, which now hold the box tightly screwed to the main body.  This box isn't coming off this time! --I will snap photographs of the setup as soon as I can and post them...

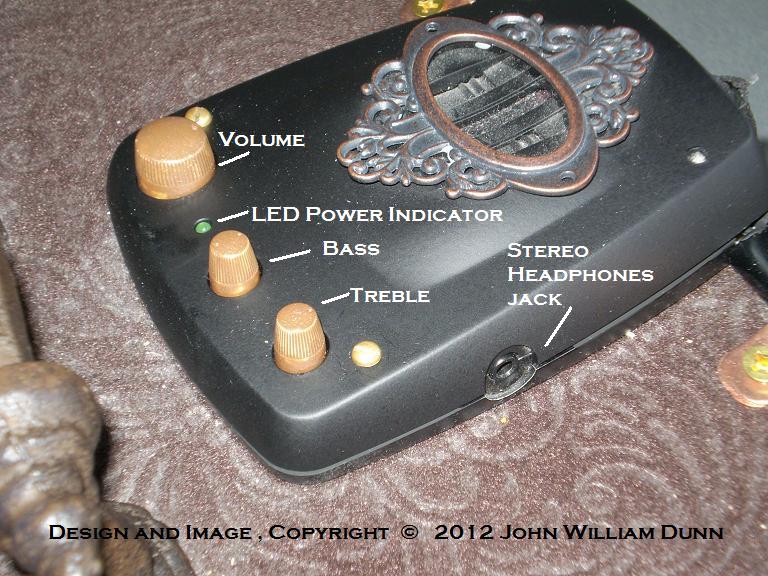

The electrical setup is most interesting, as I found out that the line level output of the iPod dock was not powerful enough for the Altec Lancing amplifier. One milliwat at one volt RMS will give you a nice sound, but only if you crank the Altec Lancing all the way up, so that's not good enough.  You see, the amplifier was designed to be connected to low-power amplified setups like computer motherboards and laptops (5 watts and up, I imagine).  No matter, I thought, analog audio technology already was very advanced by the mid 1980's, so just about any chip you can get your hands on will have a nice frequency response chart.  I disassembled a pair of Logitech amplified speakers and scavenged a miniaturized stereo pre-amplifier to serve as buffer between the dock and the Altec Lancing amplifier.  A big red switch allows you to choose between a direct auxiliary input or the Logitech/Radio Shack preamplified signal from the iPod dock.


So now you have three power supplies to contend with; a 13 VAC power transformer for the Altec Lancing, a 12VDC power transformer for the iPod dock, and a 5VDC unit for the Logitech pre-amplifier.  I ended up soldering them together and housing them inside a quaint little chest (Galvanic Power Unit).  With a handle for convenience.  The cables were run through a black vinil (?) cable sleeve that looks almost identical to the old fashioned cloth-wrapped cables-close enough.

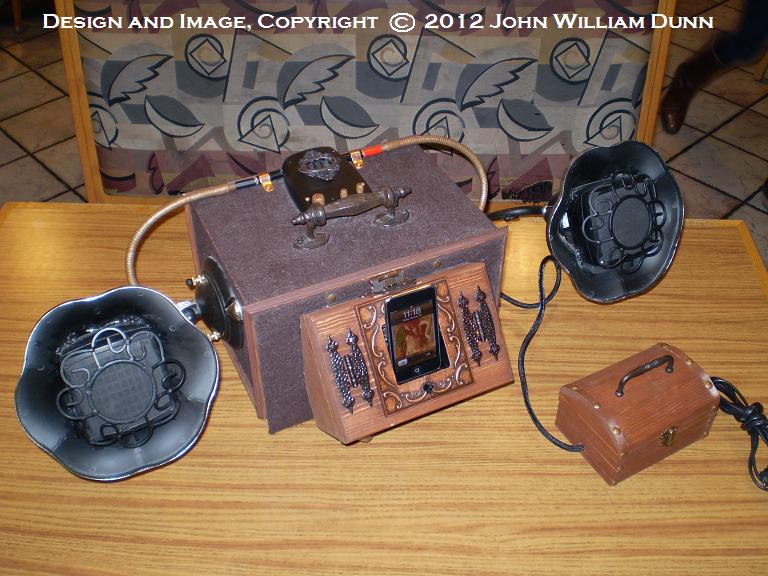

So ladies and gentlemen, I leave you with these photographs to record the evolution of this project.  Like I stated before I still haven’t heard the end of it.

I thank you for your attention and remain your humble servant,

J. Wilhelm


EDIT: This post was heavily edited because a number of photos were lost in time. Inexplicably as well I may have some missing posts in this thread. For continuity purposes I redacted a few paragraphs and used original photos on a new server to match the original post as closely as possible while still making sense.
« Last Edit: October 19, 2018, 06:51:47 am by J. Wilhelm » Logged
Maets
Immortal
**
United States United States

Gravatar

Airship Builder


WWW
« Reply #10 on: February 20, 2012, 01:35:23 pm »

That's quite a tale and quite a piece.  Nice to see all the detail. Best of luck with it in the future.
Logged

Captain Quinlin Hopkins
Zeppelin Admiral
******
United States United States



WWW
« Reply #11 on: February 20, 2012, 01:59:47 pm »

Great project.  Truly wonderful to see what education and innovation can bring to the table, versus a pot of money.  Only a measly 34 pounds?  I think my original boom box weighed in at more than that.  Just leave instructions for the help in proper lifting techniques in order not to damage such a precious device.  Optional shoulder padding available?

Logged

Sincerely,
Captain Quinlin Hopkins (Hoppy)

Do not ignore the freedoms of someone else, for eventually you will be someone else!

DFW Steampunk Illumination Society
J. Wilhelm
╬ Admiral und Luftschiffengel ╬
Board Moderator
Immortal
**
United States United States


Sentisne fortunatum punkus? Veni. Diem meum comple


WWW
« Reply #12 on: February 21, 2012, 06:25:03 am »

Great project.  Truly wonderful to see what education and innovation can bring to the table, versus a pot of money.  Only a measly 34 pounds?  I think my original boom box weighed in at more than that.  Just leave instructions for the help in proper lifting techniques in order not to damage such a precious device.  Optional shoulder padding available?


Thank you Mr. Hopkins! ...Light as a feather!  o_Q

That's quite a tale and quite a piece.  Nice to see all the detail. Best of luck with it in the future.

Thank you Mr. Maets! There are a lot of intermediary pictures that I ommitted, but essentially this is the progression (the Boombox looked like the middle photo for a very long time until it sold):



Logged
J. Wilhelm
╬ Admiral und Luftschiffengel ╬
Board Moderator
Immortal
**
United States United States


Sentisne fortunatum punkus? Veni. Diem meum comple


WWW
« Reply #13 on: September 10, 2017, 04:14:08 am »

Bwahahaha! I have succeed in transforming my venerable Viccy Boombox into a Bluetooth Aetheric Device!

Very simple project. Some of you may have seen this monster from way way back when I made this Boombox around the time when life was just emerging on planet Earth (I'm exaggerating):


Well the advantage of this device is that it's basically in iPod Dock connected to a computer subwoofer system by way of a pre-amplifier I concocted (this first generation subwoofer system is used to inputs of ~5 mW and not the 1mW line-level output of the iPod dock so you need a preamplifier so the volume is not too low). I put all sorts of inputs and outputs (video/audio from the dock) because I'm a music freak, so you can connect anything in or out by way of phono plugs or RCA plugs. In it;s heyday, I could use the iPod Dock to connect and patch you Tube videos to a television screen.

The problem is that my venerable 2nd Gen. iPod Touch suffered a catastrophic failure a couple of days ago... I dropped the thing, and after about 1000 times of not breaking in the span of many years, this time the concrete pavement won the battle. The iPod still works, but looks horrible all cracked up.

Worse, every time I take the Boombox to South by Southwest, people ask me if they can connect it via Bluetooth... So my boombox is starting to look "dated" to people...

So yesterday, I purchased a cheapo $7 Bluetooth in-ear bud headset at my local super. Betting that very low power amplifiers (such as this miniature battery earphone device) could be used with the Aux input jack of the boombox, I reasoned that sound quality would be reasonable as long as the output volume is very very low on the side of the Bluetooth device (a typical property of amplifiers is that noise increases with power output, If underpowered, you will also get sound wave clipping from the output because the battery can't keep up with the output required). It was worth a try.


So, I decided to test it by cutting off the earbuds, finding the polarity of the wires, and soldering the wires to a garden variety 1/8" stereo phono plug...

It worked  Grin


The sound quality is actually very good. The volume is not fantastic if the Bluetooth signal is coming from my iPod, as I have to jack up the volume of the amplifier all the way up to get barely decent volume  Embarrassed  However, the signal coming from my new Android phone is a lot better. You still have to jack up the volume all the way up - but when the Bluetooth volume on the Android device is jacked all the way up, you can reduce the power amp (Boombox) volume to about 85-90 % (power amp output), giving you some leeway.

Best of all the quality is 97% of what I would expect. I can still discern a bit of blurriness and noise coming from EM interference coming from the circuits inside the smartphone ( a similar problem happens with an iPod Dock).

I'm satisfied the quality is good enough to demonstrate the rich bass of the Boombox. Me happy  Grin

Now that I know this works it's time to mass produce make the new generation boombox.
My aim is to make reasonably priced smaller Blue-toothed versions of it. Grin The quality is good enough for a more inexpensive and portable version...

The one you're looking at above is a huge monster that weighs 30 lbs, has no battery capability, and has a huge separate triple voltage transformer that I often leave at home due to the enormous weight. The sound is awesome, but no one can afford it.

For this one-off above, I might incorporate an old 7 inch Android tablet I have, to take the front of the dock you see in the picture. Probably a detachable wooden bumper case attached by way of the same hinge you see in the picture. A sort of "removable tablet." The 5 volt power supply for the dock can be used for the Bluetooth device which will be connected all the time.  If I decide to make the mods, I'll keep you posted.  Grin

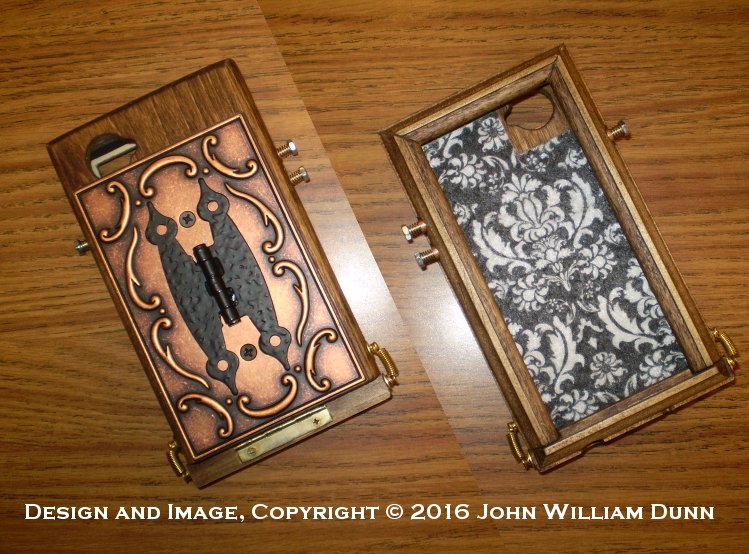

In the meantime, my new smartphone needs a new case  Roll Eyes I think I know how to do that too.

Cheers,
J. Wilhelm

« Last Edit: September 10, 2017, 04:41:26 am by J. Wilhelm » Logged
Banfili
Zeppelin Captain
*****
Australia Australia



« Reply #14 on: September 10, 2017, 01:30:37 pm »

Beautiful modding! I wonder what I could do with those two sets of music lights from the early 80s?
Logged
Miranda.T
Zeppelin Captain
*****
United Kingdom United Kingdom



« Reply #15 on: September 10, 2017, 09:45:45 pm »

Your monster boom box looks absolutely as though it was made a hundred or so years ago (with the iPod removed, of course  Wink ). I hope the formulation of the new mark II bluetooth-as-standard version goes to plan and I'm looking forward to the WiP images.

Yours,
Miranda.
Logged
J. Wilhelm
╬ Admiral und Luftschiffengel ╬
Board Moderator
Immortal
**
United States United States


Sentisne fortunatum punkus? Veni. Diem meum comple


WWW
« Reply #16 on: September 12, 2017, 09:48:55 am »

Your monster boom box looks absolutely as though it was made a hundred or so years ago (with the iPod removed, of course  Wink ). I hope the formulation of the new mark II bluetooth-as-standard version goes to plan and I'm looking forward to the WiP images.

Yours,
Miranda.

The trick is finding the time to do it. With my new work schedule, I hardly have the time to do anything any more. I spend most of my time commuting on the bus and walking. I even have to finish the silly spats I started.

I resolved some of the volume issues by connecting the Bluettoth receiver to the ore-amplifier. When I made the circuits I was lazy and did not use an line level output switch. I just soldered the input connection to the pre-amplifier to the output jacks (the output signal from the dock is shared between the line level output jacks and the pre-amplifoer... bad electronics form, since I'm "trusting" that the (most likely Op Amp based) circuits are properly voltage insulated with capacitors (that is usually the case). But this design defect gave me the opportunity to connect the output of the Bluetooth receiver into the input of the pre-amplifier, this I get a X10 amplification. The result is that teh Bluetooth reciever is now as loud as the iPod when docked in. A little tweaking with a 3rd party equalizer app and I got the exact same sound I gor from the iPod Touch.

So all I need is to make an external "plug" with the Bluetooth receiver. I guess I could go the extra mile and physically solder it inside the Apple dock and feed power from the pre-amplifier volt supply... But I think a Bluetooth receiver I can plug into any device I want would be more versatile... The battery life on the Bluetooth is not too good though, so that may push me to fully integrate the receiver. It;s so small it's barely noticeable.I can do anything with it.

A new boombox will require a quality power amplifier. I have shown the "front end" Bluetooth receiver has a very good quality, so the "back end" of the Boombox now has to be of quality. This is where you start shopping for subwoofer systems. The idea is to get a high quality yet inexpensive amplifier you can buy repeatedly, without the danger of it being discontinued any time soon. Otherwise each boombox would be a "one-off." Nothing wrong with that, but it will jack up the price tag tremendously as I have to hunt for parts and spend time searching over and over.

I like recycling and re-suing old parts, but they're also a nightmare. The Boombox sounds great; it's based on an Altec Lansing ACS-340 system (back when Altec Lansing was a high brown brand name)... As long as you don't jiggle the wires too much. It's full of cables and connectors in the back, all of them jiggly. Touch a wire, and the amplifier will give you a nasty shriek or loud "thump" and any of the three speakers will stop working until you jiggle the cables a bit more. It's the DIN type connectors in the back. All the pins are loose. That is one thing that convinced me at some point the Boombox would never sell. It's major open heart surgery to replace all of the wires and connector in the box. You can do great things with old parts, but you're also buying problems. The key is to get all new parts if you can. That is what I did with everything else I made.

So the Gen 2 Boombox will not be made from recycled parts. Theres a number of very inexpemsive subwoofer systems out there.
Logged
Miranda.T
Zeppelin Captain
*****
United Kingdom United Kingdom



« Reply #17 on: September 12, 2017, 09:53:12 pm »

The perpetual engineer's challenge - finding the sweet spot between quality and cost. But will not the issue be so much in the modern internals but rather sourcing a supply of  appropriately steamy outer casings?

Yours,
Miranda.
Logged
J. Wilhelm
╬ Admiral und Luftschiffengel ╬
Board Moderator
Immortal
**
United States United States


Sentisne fortunatum punkus? Veni. Diem meum comple


WWW
« Reply #18 on: September 12, 2017, 10:34:26 pm »

Well the outer casings are always the main cost and effort of any build. Which is why I need to keep the electronics cost down. In the case of the boombox however it's convenient if the body of the boombox is the the same as the enclosure of the subwoofer. I already have a suitable source of external materials which coincides with my casings. The other components which are untried but I have a source are the horns. Miniature horns to be precise. I'm still holding fast to the idea of using non functional horns but rather decorative for the sake of preserving the sound quality of the satellite speakers and overall compactness. I also need to make sure the horns can get banged about a bit and not break or bend.. So I have a revolutionary idea in mind...
Logged
MWBailey
Rogue Ætherlord
*
United States United States


"This is the sort of thing no-one ever believes"

rtafStElmo
« Reply #19 on: September 17, 2017, 11:53:54 pm »

How youfind time for thisthis magnificence (begging your pardon, im writing this on my pad from thr hospital) what with all the other stuff going on in your life amazes me. Great work as usual!
Logged

Walk softly and carry a big banjo...

""quid statis aspicientes in infernum"
Banfili
Zeppelin Captain
*****
Australia Australia



« Reply #20 on: September 18, 2017, 12:10:45 am »

Hospital, Mr Bailey?
Logged
J. Wilhelm
╬ Admiral und Luftschiffengel ╬
Board Moderator
Immortal
**
United States United States


Sentisne fortunatum punkus? Veni. Diem meum comple


WWW
« Reply #21 on: September 18, 2017, 12:23:03 am »

How youfind time for thisthis magnificence (begging your pardon, im writing this on my pad from thr hospital) what with all the other stuff going on in your life amazes me. Great work as usual!

Mr Bailey! Sorry to hear you're in the hospital. Wishing you a speedy recovery.

The boom box was built long ago. It was present already by the Steampunk Bible release party in 2011, back when I was a full-time Steampunk. I would have a hard time building it today, but my aim is to do precisely that but in a smaller, more modern and practical form.

iPhone/iPod no longer has the lion share of the market, and decent Bluetooth sound has made its appearance. So it's no longer practical to use a dock, when $7 can buy you a decent quality Bluetooth adapter which connects to any sound source for your amplifier. I still intend to find a decent speaker system, perhaps an inexpensive Subwoofer system, as that is the centre piece of the puzzle.
Logged
MWBailey
Rogue Ætherlord
*
United States United States


"This is the sort of thing no-one ever believes"

rtafStElmo
« Reply #22 on: September 18, 2017, 05:40:51 am »

Hospital, Mr Bailey?




(Edited for content -er, haarrrumph!)

I'm mostly recovered now, but things were hairy there for a few days. Might be going home soon...
« Last Edit: September 18, 2017, 05:25:17 pm by MWBailey » Logged
Miranda.T
Zeppelin Captain
*****
United Kingdom United Kingdom



« Reply #23 on: September 18, 2017, 06:16:29 pm »

Hospital, Mr Bailey?




(Edited for content -er, haarrrumph!)

I'm mostly recovered now, but things were hairy there for a few days. Might be going home soon...


I'm very sorry to hear that - I hope you feel back to rights soon.

How youfind time for thisthis magnificence (begging your pardon, im writing this on my pad from thr hospital) what with all the other stuff going on in your life amazes me. Great work as usual!

Mr Bailey! Sorry to hear you're in the hospital. Wishing you a speedy recovery.

The boom box was built long ago. It was present already by the Steampunk Bible release party in 2011, back when I was a full-time Steampunk. I would have a hard time building it today, but my aim is to do precisely that but in a smaller, more modern and practical form.

iPhone/iPod no longer has the lion share of the market, and decent Bluetooth sound has made its appearance. So it's no longer practical to use a dock, when $7 can buy you a decent quality Bluetooth adapter which connects to any sound source for your amplifier. I still intend to find a decent speaker system, perhaps an inexpensive Subwoofer system, as that is the centre piece of the puzzle.

That sounds like a jolly good plan; best of luck with the search for the speakers.

Yours,
Miranda.
Logged
J. Wilhelm
╬ Admiral und Luftschiffengel ╬
Board Moderator
Immortal
**
United States United States


Sentisne fortunatum punkus? Veni. Diem meum comple


WWW
« Reply #24 on: October 16, 2018, 10:40:52 pm »

Dear ladies and gentlemen:

Alright! So time has come for me to update the Boombox. As I wrote above, I have an extra tablet ($50 cheapo RCA tablet from Walmart) that I purchased a couple of years ago and I hardly use. Nifty tablet, it's just no match for my phone. The "On" button also broke off and I turn it on and off now by shorting two wires I soldered to the tablet's mainboard...

Also on account that my trusty iPod Touch 2.0 is now broken - still works but the screen is cracked.  Roll Eyes

I'm thinking of replacing the front face of the Boombox's dock with the tablet, perhaps held by one of my bumper cases used as a lid of sorts over the iPod dock, It so happens that I made a bumper case just for this tablet when I bought it - only trouble is the case plus tablet weigh a TON).

The case in question is this side by side with the tablet:



Which is one of many styles of bumper cases I've made before, but in the latest style (2016) which I named " Landau." I think I called it "Irongate" before? Cheesy Honestly I forget. I'm old!  I can't find the posts anymore. The boombox itself, was in fact the inspiration of this new style, and the plates in the back are... you guessed it, electric switch plates with the same black iron hinges I used in the Boombox  Grin but by the time I came up with it, the business had all but dried up by about two years and I was too busy working a regular job.

The "Landau" style. Fall/Winter 2015

eCog Aphrodite for RCA Voyager I and II

iCog Dione for iPhone 6/6s

Now, what I want is simply to attach the tablet to the front of the dock, with a swing top and a removable case like I used to do with my iPad tablet keyboard cases.

iCog Hades for iPad Air

It just happens that the size of the tablet case is nearly identical to the front of the iPod dock shown above. In theory, all I need is to drill some holes into the bumper case and use threaded brass wood inserts and attach with knurled knobs. I'm thinking I'd keep the iPod dock hidden behind it, but nothing would ever dock to it as there are not too many iPhone 4's lying around these days.

What I worry about is that the case is ridiculously heavy. For some reason, the Landau plate is very light for a single toggle switch, but the three-toggle switch plate is impossibly heavy. It's some die cast metal, but you'd think it was moulded out of lead by the way that it weighs. My copperplate backed cases were much lighter!!

In other news, I wrote above that I also have managed to make a bluetooth plug-in adapter (from a discarded set of Bluetooth earbuds that works wonders if I plug it into the pre-amplifier very nice sound. I'm debating whether to attach it permanently. The key issues being that the batteries on both the tablet and Bluetooth earbuds are plain garbage (I can hear the stupid battery on the tablet rattling now - I have opened this case before and I had to remove the battery. Any suggestions on wiring them to the power supply? (I have +5V, +12 leads I can tap from the pre-amplifier and dock, respectively)...


I might even have enough time to do it in the next few days?


.... OK, that's wishful thinking. Cheesy I'd probably better focus on my costume. But I still want to do it. And I'm kind of interested on building a portable power supply (as written above I have three power supplies a "high" voltage A/C for the amp, a 12 V DC for the dock and a 5 V DC for the pre-amplifier board. Ideally I'd replace those with something relatively "lightweight." At issue is that I can't carry all that equipment without breaking my back...  Tongue

What say you? Is this a worthy project? Yea or Ney? In the Era of Bluetooth is this a futile exercise? What would the Viking Harold Bluetooth say?
« Last Edit: October 17, 2018, 07:18:32 pm by J. Wilhelm » Logged
Pages: [1] 2   Go Up
  Print

Jump to:

Powered by MySQL Powered by PHP Powered by SMF 1.1.20 | SMF © 2013, Simple Machines Valid XHTML 1.0! Valid CSS!
Page created in 0.73 seconds with 16 queries.
