Author Topic: The Pentecost Computation Engine W.I.P. (Will be Pic Heavy)  (Read 6163 times)
Lord Pentecost
Snr. Officer
****
United Kingdom United Kingdom



WWW
« Reply #50 on: October 25, 2015, 04:46:40 pm »

Adding bits to the sides,
one side.


The other side.
Logged

"A lot of people never use their initiative because no-one told them to" - Banksy
Lord Pentecost
Snr. Officer
****
United Kingdom United Kingdom



WWW
« Reply #51 on: December 07, 2015, 09:10:07 pm »

I while since my last post, time for something a little different, the mechanical computation engine.

It started off as this wooden egg cupboard, this is after I sanded it want to know what it looked like before sanding? think orange!


Then re-stained


and Varnished (trying a few bits)


start of the innards ( Left: the chassis of a data tape drive,  Centre: the chassis of a floppy drive, Right: a clock mechanism frame, all with additions)


A bit more done (and in the cupboard)
Logged
Hektor Plasm
Zeppelin Captain
*****
United Kingdom United Kingdom


All-Round Oddfellow.


WWW
« Reply #52 on: December 07, 2015, 10:10:38 pm »

Oh my- that looks brilliant!

HP
Logged

"all die! o, the embarrassment."
H Plasm Esq. ICUE    Avatar by and with kind permission of Dr Geof. Ta!!

Some musings:-
http://hektorplasm.blogspot.co.uk/
Cousin Itt
Officer
***
United States United States


Kontraptional Ungineer


« Reply #53 on: December 09, 2015, 01:29:09 am »

Whoa  Shocked,.....Gears Huh

Mental note to self,........
                                  Must include some Brass Gears and make them do something.  Undecided



Looking good Lord Pentecost.  Grin


Cousin Itt
Logged
Miranda.T
Zeppelin Captain
*****
United Kingdom United Kingdom



« Reply #54 on: December 09, 2015, 07:50:20 pm »

Looking really good - Babbage would be proud!

Yours,
Miranda.
Logged
Lord Pentecost
Snr. Officer
****
United Kingdom United Kingdom



WWW
« Reply #55 on: February 14, 2016, 05:48:07 pm »

Another update.

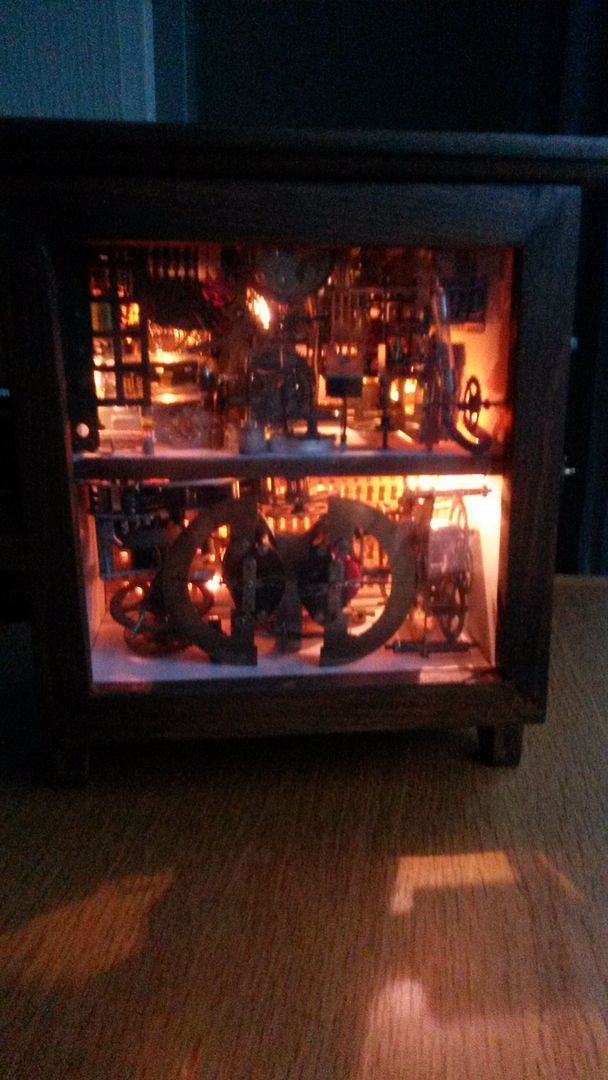

The finished cupboard with lights on, I will get a better image of this at some point.

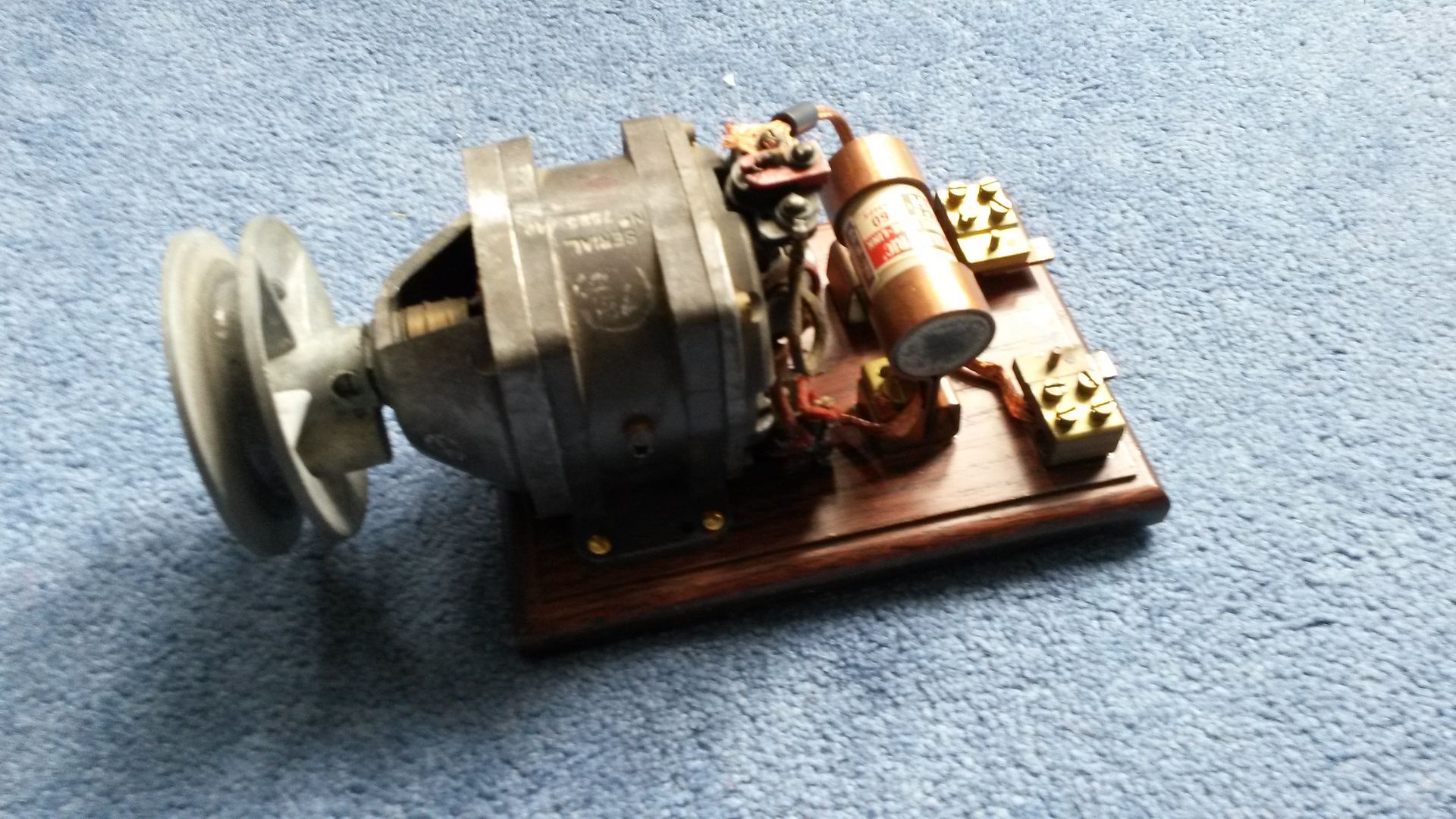

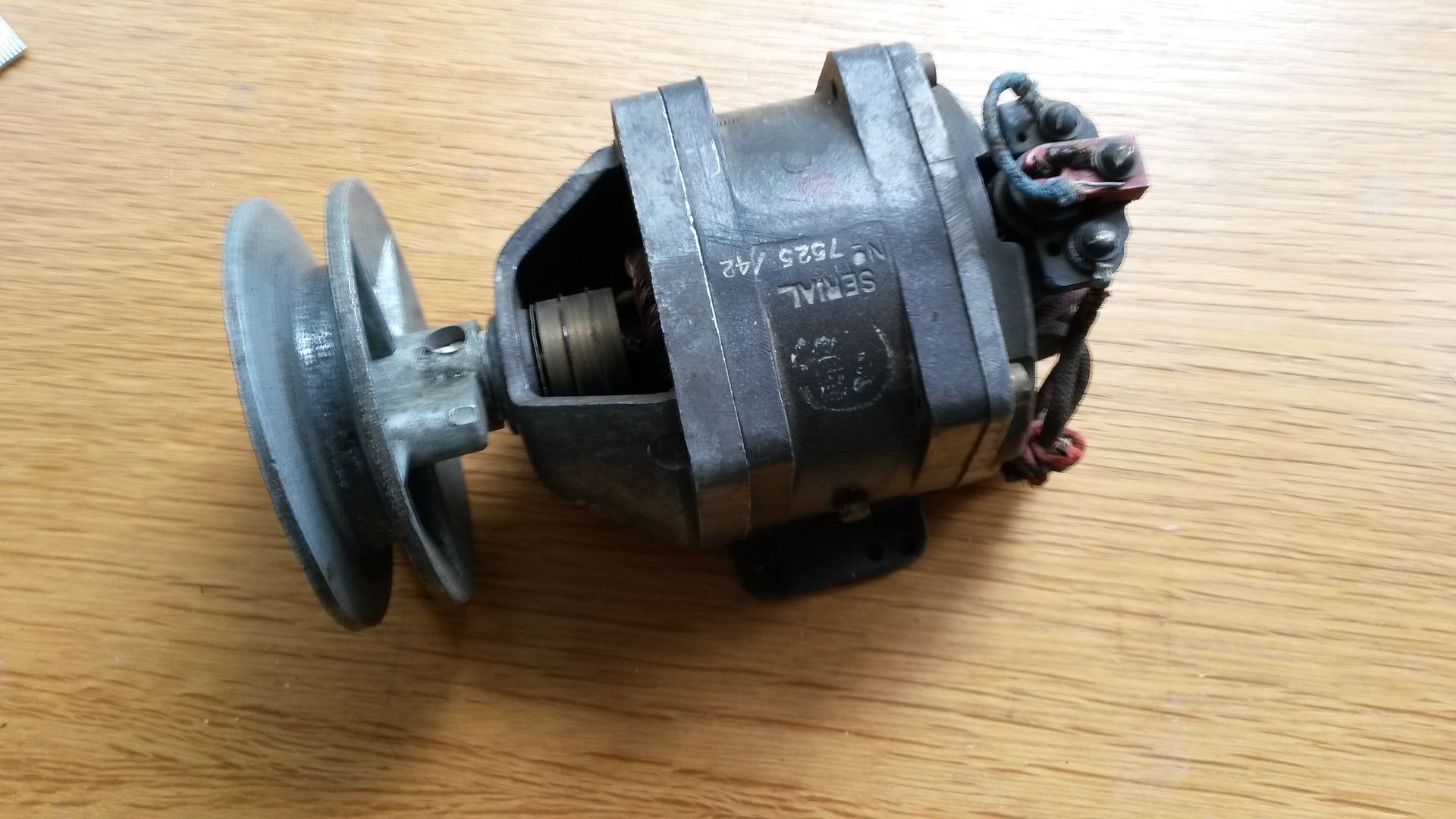

A little old Motor

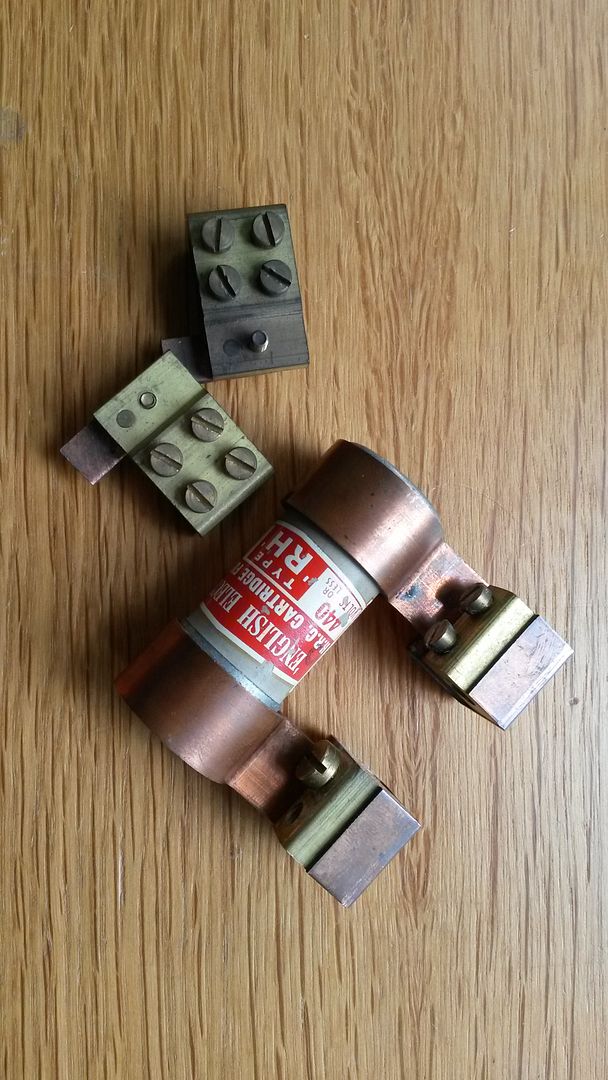

And some misc junk


Will make an excellent little generator.
« Last Edit: May 14, 2016, 07:22:32 pm by Lord Pentecost » Logged
von Corax
Squire of the Lambda Calculus
Moderator
Immortal
*
Canada Canada

Prof. Darwin Prætorius von Corax


« Reply #56 on: February 14, 2016, 07:10:18 pm »

Piccies no workie.  Cry
Logged

By the power of caffeine do I set my mind in motion
By the Beans of Life do my thoughts acquire speed
My hands acquire a shaking
The shaking becomes a warning
By the power of caffeine do I set my mind in motion
The Leverkusen Institute of Paleocybernetics is 5838 km from Reading
Lord Pentecost
Snr. Officer
****
United Kingdom United Kingdom



WWW
« Reply #57 on: February 14, 2016, 08:52:46 pm »

Piccies no workie.  Cry

I could swear google photos only works on here when it feels like it!
Logged
Maets
Immortal
**
United States United States

Gravatar

Airship Builder


WWW
« Reply #58 on: February 14, 2016, 09:15:03 pm »

The address you now get in google+ is only temporary.  At this point you can get a valid address in Picasa.  All your google stuff should be there.  Picasa is changing, but hopefully this will continue to work.
Logged

Lord Pentecost
Snr. Officer
****
United Kingdom United Kingdom



WWW
« Reply #59 on: May 14, 2016, 07:22:59 pm »

piccies should workie now Smiley
Logged
Lord Pentecost
Snr. Officer
****
United Kingdom United Kingdom



WWW
« Reply #60 on: May 14, 2016, 07:27:34 pm »

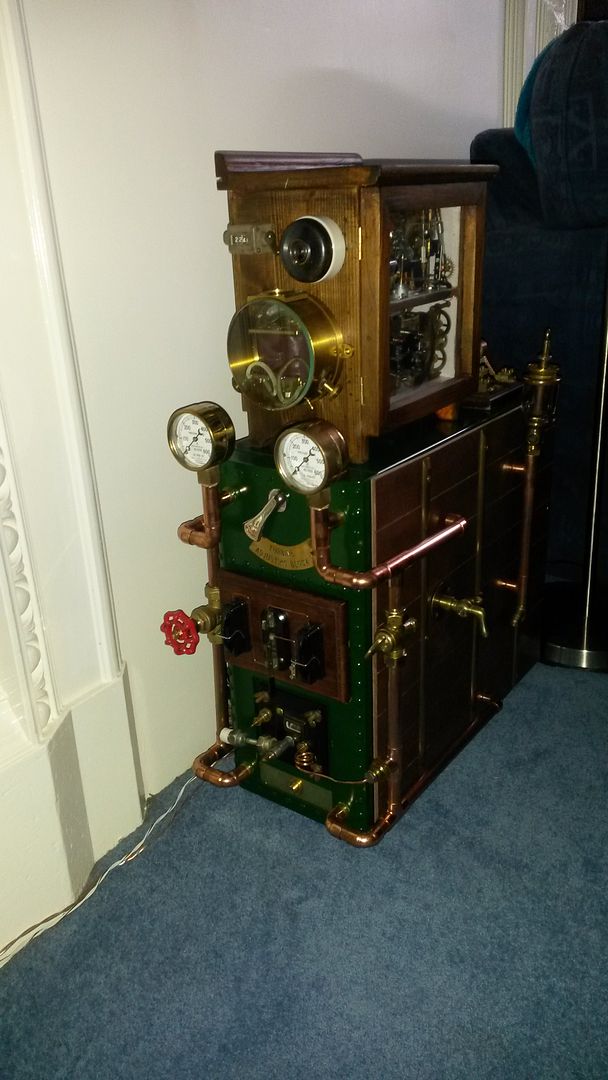

Case complete(ish) ready to install the computery innards

Logged
Maets
Immortal
**
United States United States

Gravatar

Airship Builder


WWW
« Reply #61 on: May 15, 2016, 04:56:43 pm »

Looks great!
Logged
husbandofemily
Officer
***
United Kingdom United Kingdom



« Reply #62 on: May 22, 2016, 07:25:37 am »

Incredible. I love how it looks lit up.  Cool
Logged
selectedgrub
Guest
« Reply #63 on: May 22, 2016, 07:31:58 am »

Fantastic.
Logged
Miranda.T
Zeppelin Captain
*****
United Kingdom United Kingdom



« Reply #64 on: May 22, 2016, 08:10:52 pm »

A fabulous piece! Would it be possible to post some close-ups of the details?

Yours,
Miranda.
Logged
Lord Pentecost
Snr. Officer
****
United Kingdom United Kingdom



WWW
« Reply #65 on: June 10, 2016, 08:10:32 pm »

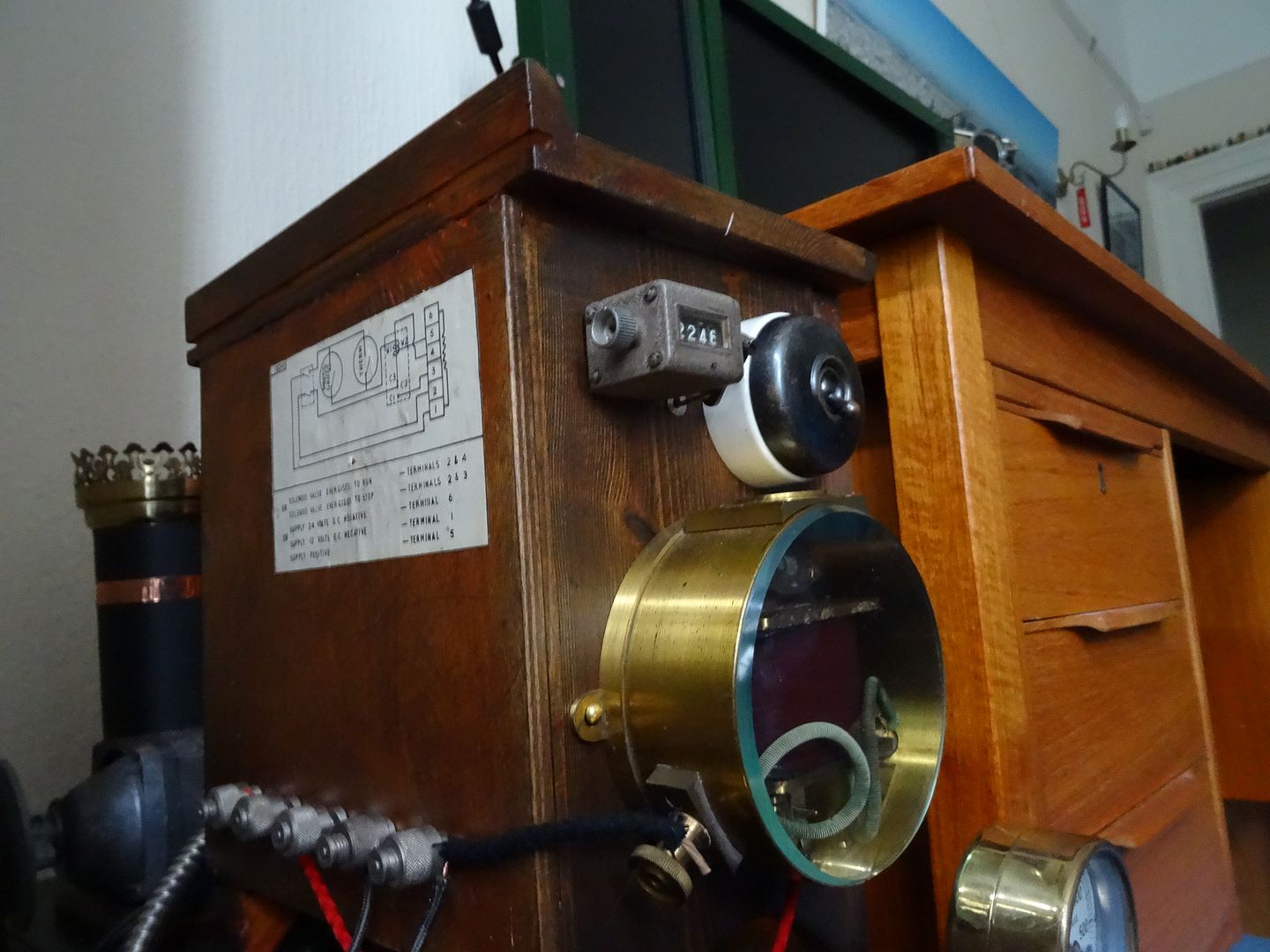

This now has a PC in it!

Details as requested:

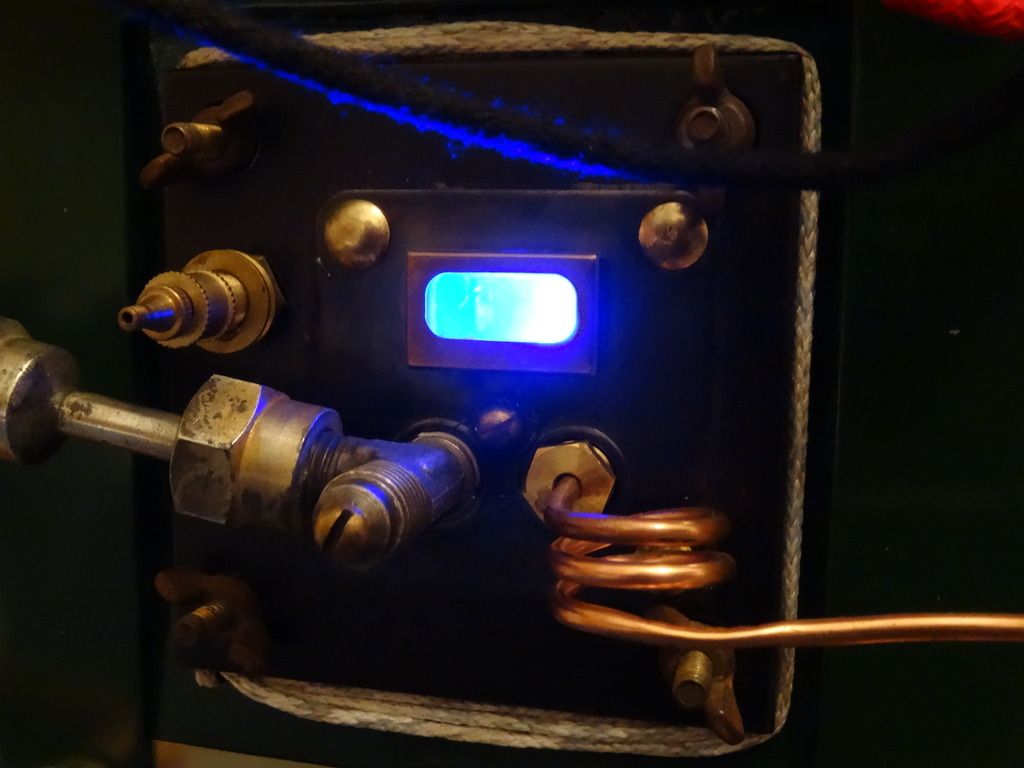

Power Light

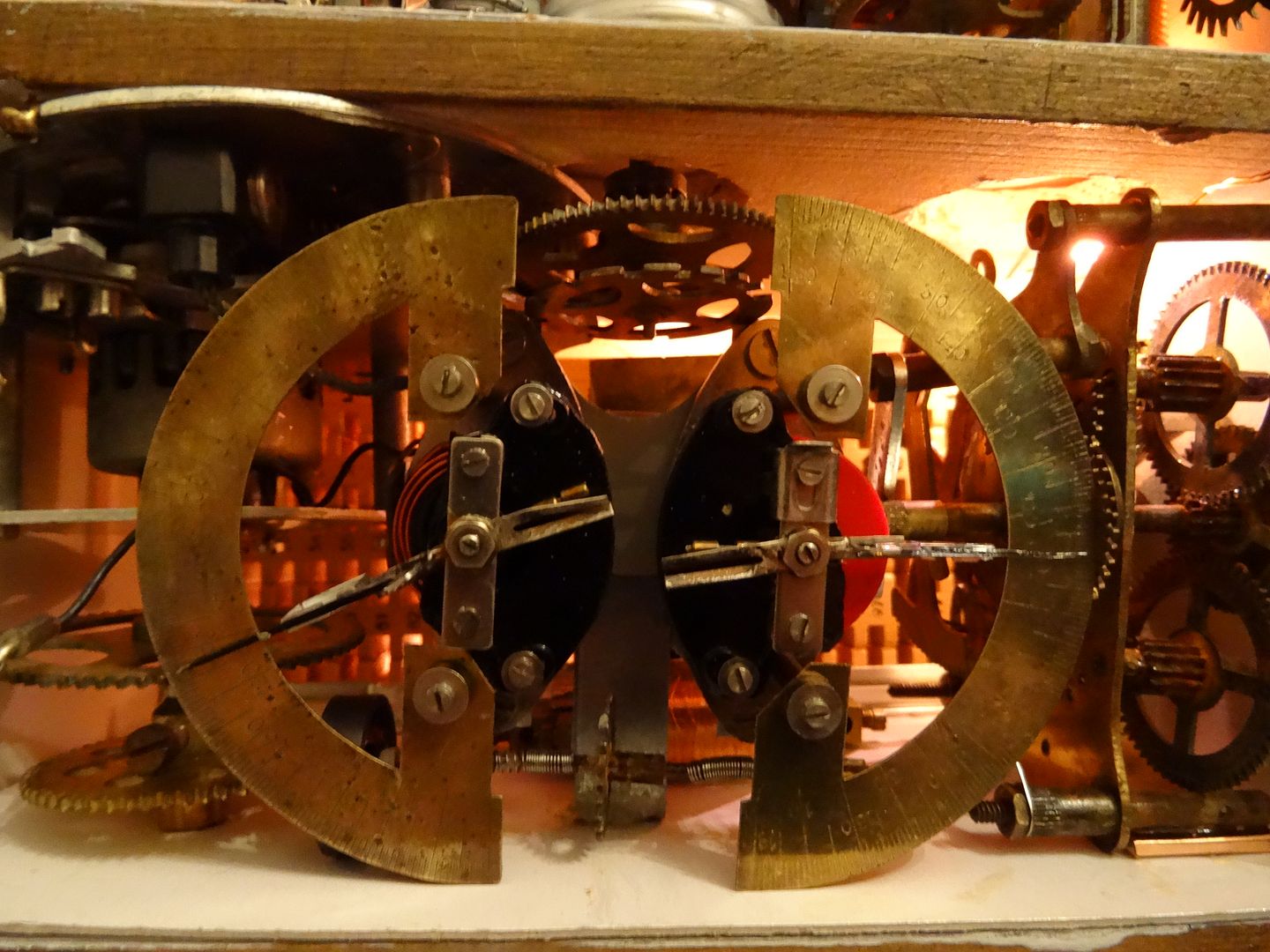

Box on top

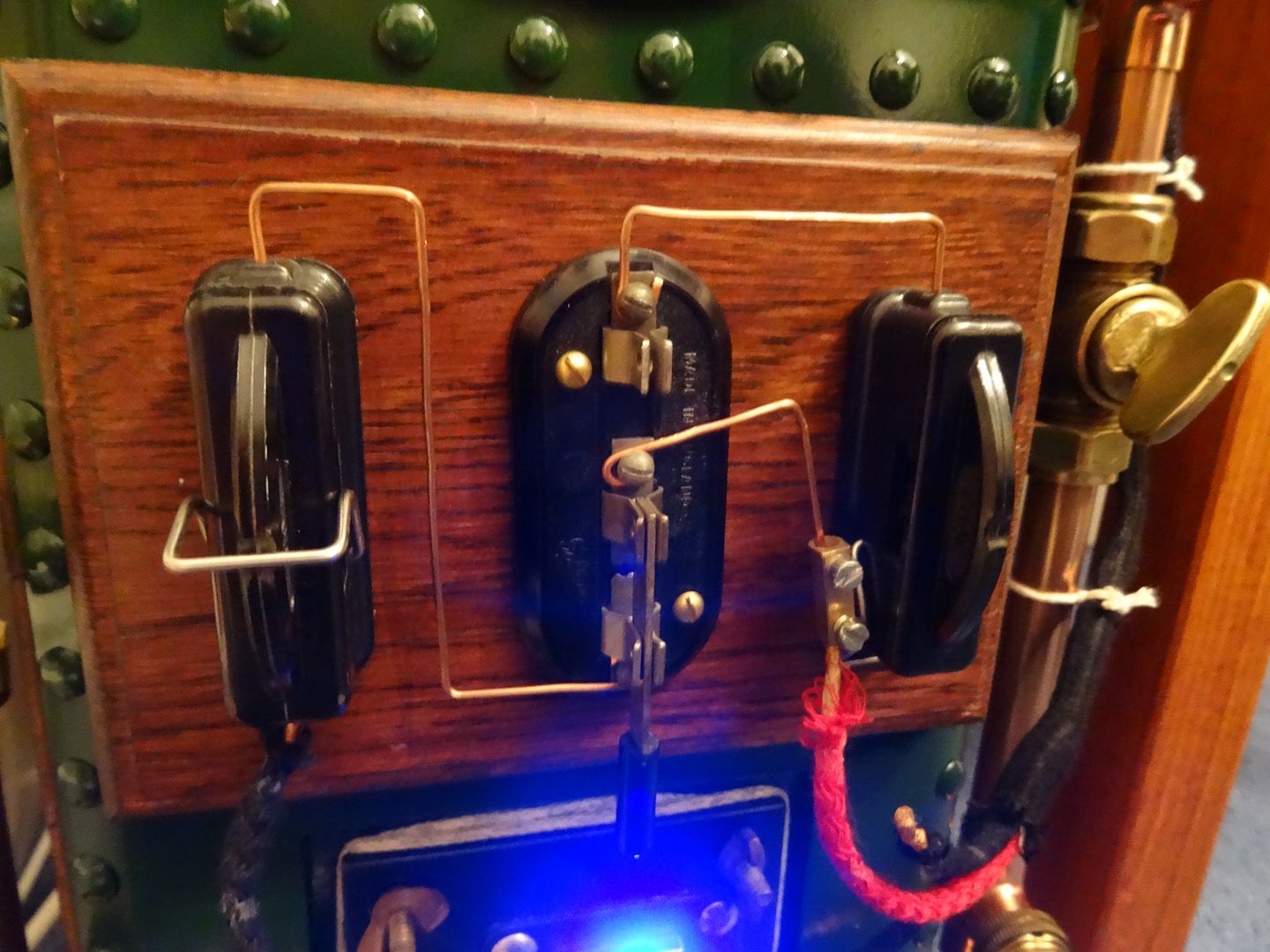

Front Panel

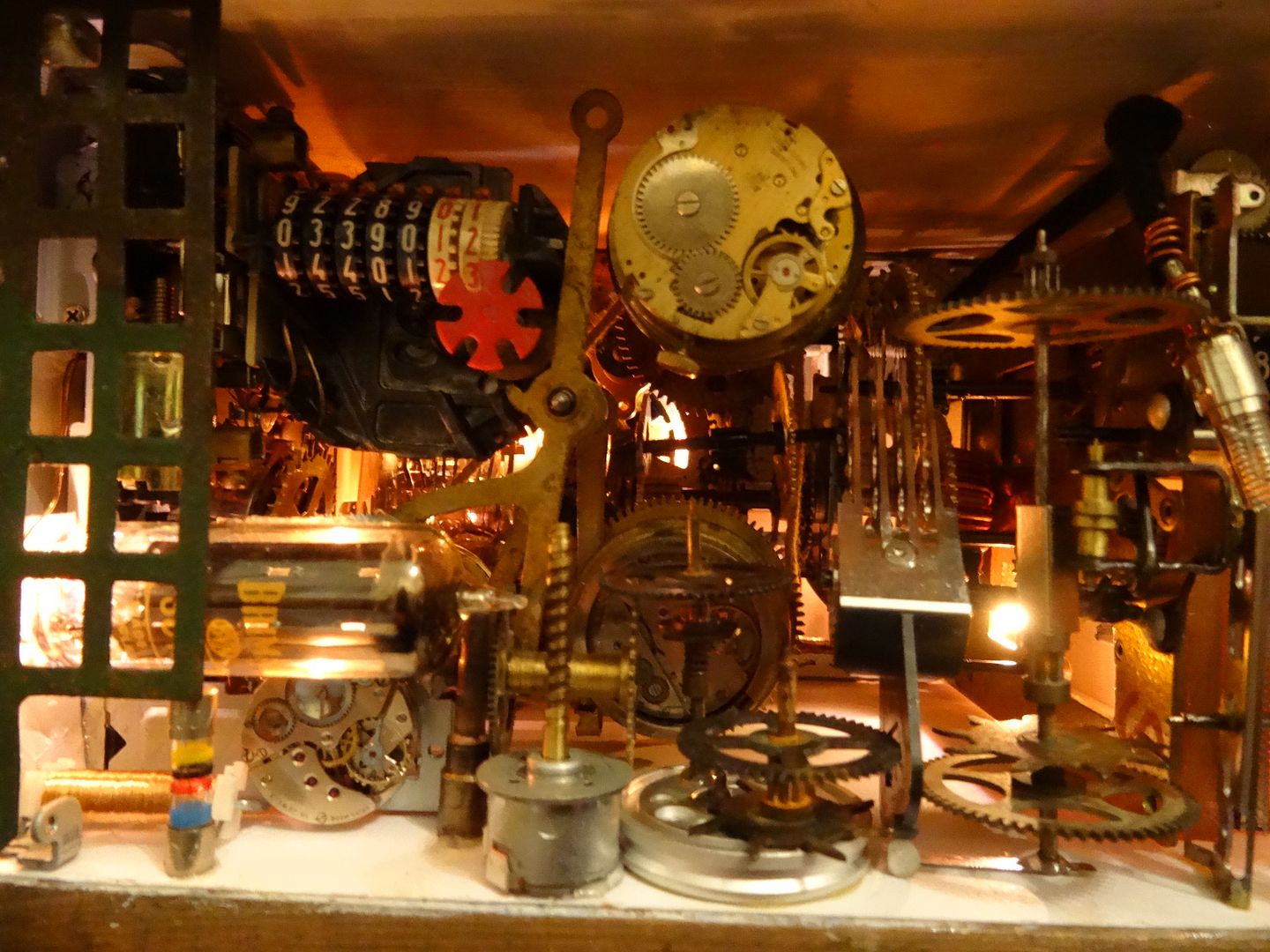

Outside of top box


Logged
Banfili
Zeppelin Captain
*****
Australia Australia



« Reply #66 on: June 11, 2016, 12:10:54 am »

Ooooh, 'Proper job', Lord Pentecost!
Do all those internal cogs connect to anything to look as if they are driving the innards?
« Last Edit: June 11, 2016, 12:13:18 am by Banfili » Logged
Lord Pentecost
Snr. Officer
****
United Kingdom United Kingdom



WWW
« Reply #67 on: June 11, 2016, 07:27:34 pm »

Ooooh, 'Proper job', Lord Pentecost!
Do all those internal cogs connect to anything to look as if they are driving the innards?

As much as possible I've tried to make it looks as if the cogs mesh together actually making them turn is beyond my ability, maybe next time!
Logged
selectedgrub
Guest
« Reply #68 on: June 11, 2016, 10:03:13 pm »

It looks like it works, that is the main thing.
What a delightful contraption I love it and all the great work and detail you have put into it.
Thanks very much for sharing the journey in it's creation.
Logged
Maets
Immortal
**
United States United States

Gravatar

Airship Builder


WWW
« Reply #69 on: June 14, 2016, 01:07:05 pm »

Well done!
Logged
Professor Cobb
Deck Hand
*
United Kingdom United Kingdom



WWW
« Reply #70 on: June 14, 2016, 02:49:47 pm »

Well done, Lord Pentecost.
That is a tough looking machine that looks as if it will run for decades, without the blue window of death popping up.
I have a slightly smaller computer I'm going to convert. I'm thinking along the lines of the wonderful kettle steam engines the Victorian steam launches use on Lake Windermere, in the Lake District.
I certainly want to start mine now, after seeing your build. (in between six projects I'm doing right now. Why have we only got a 24 hr day? O yes, sleep.)





Thought I better show a pic of the launches for friends outside of the uk.
Logged
Lord Pentecost
Snr. Officer
****
United Kingdom United Kingdom



WWW
« Reply #71 on: June 14, 2016, 07:48:18 pm »

I'll be interested to see what you come up with Professor Cobb, I considered "rounding off" the sides of mine but couldn't work out how.
Logged
Drew P
Zeppelin Admiral
******
United States United States


« Reply #72 on: June 15, 2016, 12:14:20 am »

Rounding off the corners or making the sides like a barrel?

For large radius corners get a stair railing/hand rail or a wooden pole for hanging clothes, and a band saw. Slice in half and half again.
No bandsaw? A large file.....
Logged

Never ask 'Why?'
Always ask 'Why not!?'
Lord Pentecost
Snr. Officer
****
United Kingdom United Kingdom



WWW
« Reply #73 on: June 15, 2016, 07:14:38 pm »

It would be more making barrel like sides and still having the side panels removable.
Logged
Drew P
Zeppelin Admiral
******
United States United States


« Reply #74 on: June 16, 2016, 03:46:06 am »

Hmmmm....?
Well, you could cut curved ribs and mount the wood slats to those pieces of wood. Then use hinges on one side with a mini brass doorlatch on the other.
Logged
