Author Topic: Leather belt pouch - a photo how to  (Read 5511 times)
Punkables
Gunner
**
United States United States


« on: October 26, 2010, 07:42:38 am »

WARNING: Contains information by a nonprofessional. I am not an expert at any of these skill.

Constructive criticism is welcome.

Tools

A metal straight edge is helpful when cutting leather from pattern

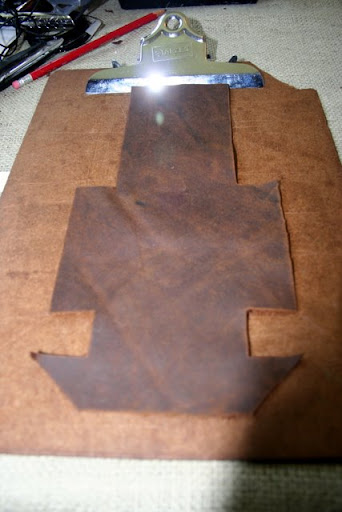

Cutting from pattern

If I need to mark the leather I use a pencil and rub the marks off later.

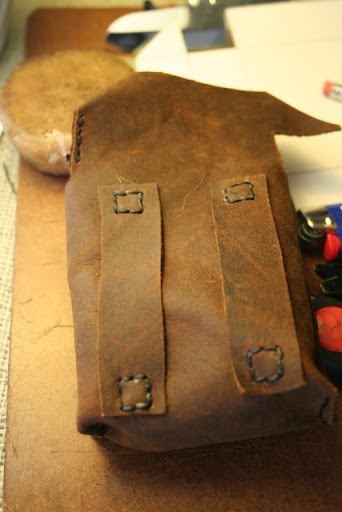

Attach belt loops

Do this sewing first. If you forget and do it last it will be alot harder.

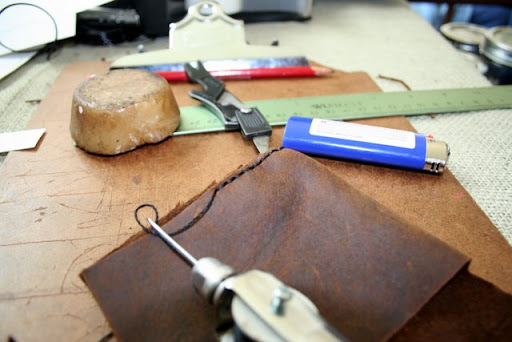

Stitch up sides starting at bottom

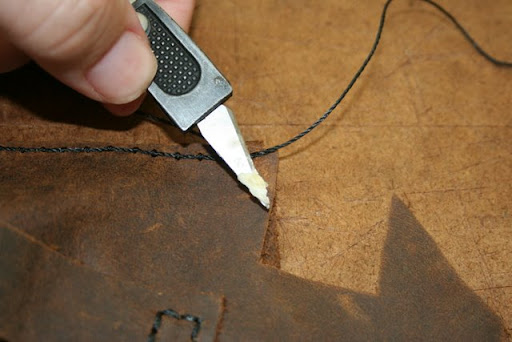

Tying up loose ends

I apply drops of melted bees wax in the middle of my square knot. Otherwise the knot will become untyed.

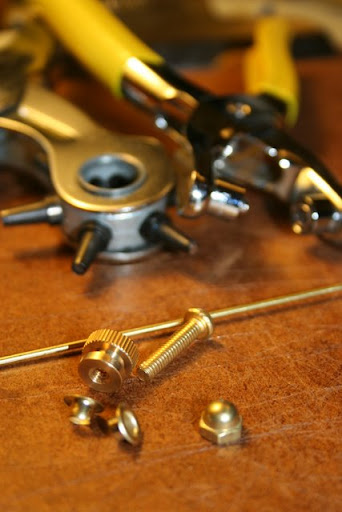

Tools and supplies to make a custom closure

Holes punch, eyelet setter, brass eyelets, 1/16 brass rod, panhead screw, knurl nut, acorn nut

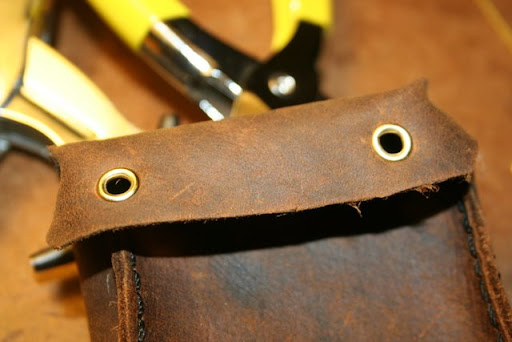

Add eyelets

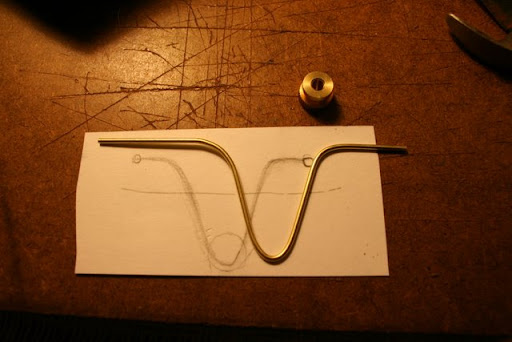

Make pattern, bend rod

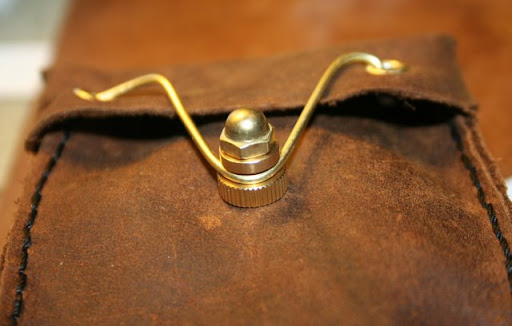

Installed looks like this


Punch hole, install screw, knurl nut, and acorn nut.

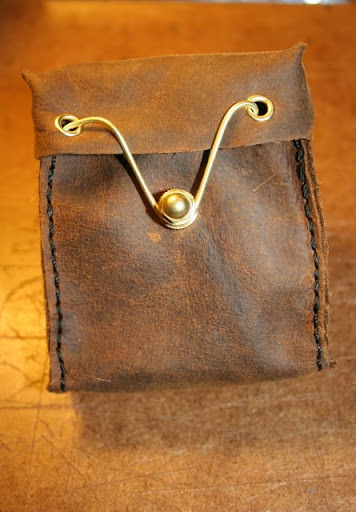

Finished product







Logged

JingleJoe
Zeppelin Overlord
*******
United Kingdom United Kingdom


The Green Dungeon Alchemist


WWW
« Reply #1 on: October 26, 2010, 09:29:41 pm »

Bloody brilliant! This is just the sort of thing that adds a steampunk touch to an ensemble or item without being a gear Smiley fantastic!
Logged

Green Dungeon Alchemist Laboratories
Providing weird sound contraptions and time machines since 2064.
Narsil
Immortal
**
United Kingdom United Kingdom



WWW
« Reply #2 on: October 27, 2010, 12:23:43 am »


Very nice Smiley

On tip I would suggest is that when cutting internal corners on leather it can be good to punch out a small hole from the apex of the corner this halps the leather to fold neatly without puckering and more importantly reduces teh risk of the leather tearing at the corner, which can otherwise be a weak point, particularly since it's very difficult not to overrun slightly when cutting it out.

For that matter the same applies when working with sheet metal, particlualry if you;re folding it.
Logged







A man of eighty has outlived probably three new schools of painting, two of architecture and poetry and a hundred in dress.
Lord Byron
Punkables
Gunner
**
United States United States


« Reply #3 on: October 27, 2010, 03:33:50 am »

Thanks for the tip. I hadn't thought to do that but it seems like a good idea.
Logged
LadyAsprin
Zeppelin Admiral
******
Scotland Scotland


Sabreuse.


WWW
« Reply #4 on: October 27, 2010, 10:49:04 am »

Thanks, will try that pattern in canvas.
Logged

Only girls fight with swords these days.(Wellington - Duel and Duality - Blackadder III)
CptFancyBreeches
Officer
***
United States United States


Maker/Airship Captain


« Reply #5 on: December 03, 2010, 11:15:19 am »

i like it.
 i may make something similar with an internal framework or stiff backing inside for more of a rigid/molded look
Logged

Sic gorgiamus allos subjectatos nunc
Damien Frey
Guest
« Reply #6 on: December 03, 2010, 12:10:19 pm »

Quote
Attach belt loops
Do this sewing first. If you forget and do it last it will be alot harder.
I'm working on one myself and I agree totally! I kind of forgot about them on mine though... oops!
Spoiler (click to show/hide)

That looks really good and I particularly like the fastening system that you have.

Keep up the good work!

Logged
