Author Topic: Orrery Mark II  (Read 21195 times)
JennyWren
Zeppelin Captain
*****
United Kingdom United Kingdom

Viola Ambrose Flux: Dilettante


« Reply #50 on: October 16, 2009, 01:11:45 pm »

truly awesome work, Love it
Logged

I don’t suffer from insanity, I revel in it.                            To die would be an awfully big adventure
"Viagra Chapstick" - For that stiff upper lip                         I dont have an anger management problem I just like to solve my problems with violence
tophatdan
Zeppelin Captain
*****
United States United States


I'm not Steampunk, I Live Steampunk....


WWW
« Reply #51 on: November 26, 2009, 04:31:39 am »

one must ask... if a person wanted an orrery with 16 planets.... could it be done?

including in addition to the 8 major planets, the 8 minor planets:

ceres,
pluto/charon,
haumea,
makemake,
eris,
sedna,
varuna,

if this could be done, what might one price such an abomination at?
Logged

you gotta love livin babe, cause dyin is a pain in the ass -----
 frank sinatra
Mechanism Man
Zeppelin Captain
*****
United Kingdom United Kingdom



« Reply #52 on: November 26, 2009, 09:58:40 pm »

Good evening Mr. Tophatdan,
Hmm, all the minor planets you say......? Yes, that is extremely possible! The one I'm building at the moment will have Ceres and Pluto included, but the other planets could be easily added - there would be one heck of a lot of gears whizzing about, but it most certainly could be done.
Price wise (big gulp...), if you just wanted the planets alone, and nothing fancy going on with the Earth and Moon, the price would be £1600. If you wanted to add an inclined Earth to show the seasons, and an orbiting Moon, the price would be £1800. This would obviously involve me doing all the maths to sort out the extra gear ratios, as well as designing the extra frame layers to accommodate the extra gearing, so it would take three or four months to build, but boy, would it be impressive. The current version (including Pluto and Ceres) has 55 gears and 8 frame layers, so God only knows how many this beast would have!
You've got me thinking now, it would certainly be pretty unique, that's for sure!
Thanks for asking, take care, Dave.
Logged

Sometimes, I think that the surest sign that intelligent life exists elsewhere in the universe, is that none of it has ever tried to contact us...
Calvin and Hobbs.
tophatdan
Zeppelin Captain
*****
United States United States


I'm not Steampunk, I Live Steampunk....


WWW
« Reply #53 on: November 27, 2009, 12:12:26 am »

well 16 planets, double that to 16 frame layers and prolly 110 gears....

hm, let me think on this, i mean i def. want it, but i dont want to tell you to begin work untill i have a chance to check finances out...

you might just think to do a little short hand math on this because i am quite interested... and just think, you would be the only one making one!
Logged
Mechanism Man
Zeppelin Captain
*****
United Kingdom United Kingdom



« Reply #54 on: November 30, 2009, 11:23:37 pm »

Hello again Mr. Dan,
Well I've been doing a bit research into an your orrery idea which would include the 8 minor planets, and have discovered a few interesting niblets of information and one big problem....
If this was to be to built to proper orbit speeds, then 7 of the proposed new additions are not a huge problem. Of the slowest ones, Makemake has an orbit time of 310 years, and Eris 557. These are both achievable - they'd have gear trains of about 11 to 13 gears each to slow them down enough, but it can be done. However, it's dear old Sedna that gets things a bit tricky. It has an orbit speed of - wait for it - 12059 years! Now, even with my rather nifty gear building skills that's going to be a slightly tricky thing to achieve. Worm screws driving big gears - lots of them - would be one way of doing it, but we may have to satisfy ourselves with compromising a bit (quite a bit) and give it a much faster orbit speed to keep things realistic - it would still be the slowest object on the machine by far and would move at an almost imperceptible speed, just not that slow!
I'll have a tinker with a pencil and paper to see what gear ratios we would need and report back. Like I said - lots of gears...
 Shocked
Logged
tophatdan
Zeppelin Captain
*****
United States United States


I'm not Steampunk, I Live Steampunk....


WWW
« Reply #55 on: December 01, 2009, 11:46:27 am »

if i were to have this made i would wish to have them all moving in the proper orbits of course, and i knew sedna's orbit was quite slow, but i didnt know it was that slow...

please keep looking into this as i am becoming more interester... is there any way that sedna could be inddependantly geared on a single giant gear so as to make it's movement so slow? just a thought...
Logged
Mechanism Man
Zeppelin Captain
*****
United Kingdom United Kingdom



« Reply #56 on: December 10, 2009, 06:04:11 pm »

if i were to have this made i would wish to have them all moving in the proper orbits of course, and i knew sedna's orbit was quite slow, but i didn't know it was that slow...

please keep looking into this as i am becoming more interester... is there any way that sedna could be independently geared on a single giant gear so as to make it's movement so slow? just a thought...


Hello again Mr. Dan,
Having given this a good deal of thought, I'm afraid that I'm going to have admit defeat on Sedna's ultra slow orbit speed. With wooden gears, and keeping within the confines of my basic design, it just isn't possible I'm afraid - sorry.
As for your thought of independently gearing Sedna, all the planets on my machines have there own set of gearing anyhow, so a nice thought, but no good I'm afraid. Any mechanical system that I can come up with would be so big and cumbersome it would dwarf the rest of the machine. So I think that if was to be built, Sedna would still be the slowest planet, but like I said, just not to the tune of one orbit in 12,059 years... Just out of interest, take a look at Sedna's orbit track if you get the chance (here's a link - http://en.wikipedia.org/wiki/File:Oort_cloud_Sedna_orbit.svg ),  it explains why it's sooo slow. It's very much like a comets orbit in that it sling shots around the sun before belting back out into deep space, and at it's farthest point it's a good 15-20 times farther away from the Sun than Pluto... that's a looong way....
Like I said, sorry I can't help. Let me know your thoughts on a speeded up version.
Cheers, Dave
« Last Edit: December 10, 2009, 06:13:48 pm by Mechanism Man » Logged
Cubinoid
Zeppelin Captain
*****
United Kingdom United Kingdom


Cubinoid and Tixia Loxtonian

cubinoid
WWW
« Reply #57 on: December 11, 2009, 05:50:26 pm »

That would be one MASSIVE gear!

I'd suggest leaving it static...or have a switch that rotates it halfway through the orbit.

You could turn it every 6029.5 years!  Roll Eyes
Logged

We are proud to present the Surrey Steampunk Convivial, for your pleasure:
Mechanism Man
Zeppelin Captain
*****
United Kingdom United Kingdom



« Reply #58 on: December 11, 2009, 10:27:44 pm »

Hmm, not sure about the switch on/switch off idea - think that it might be a bit at odds with the slow and smooth motion of the rest of the machine...   but...  you've got me thinking about electronics and stepper motors. I think that I could get away with a little hidden electronic cleverness for just one planet.
Just wish I had the first clue as to how to do it. I understand electronics like the average 5 year old understands the laws of nuclear fusion.
Time for a bit of research me thinks.
 Huh
Logged
Mechanism Man
Zeppelin Captain
*****
United Kingdom United Kingdom



« Reply #59 on: January 26, 2010, 12:24:15 am »

Hi all,
Just wanted to blow my own brassy trumpet, doff my hat, and beam proudly at you all for a minute as I've just put the final gearing for Pluto onto my latest orrery, the one planet that I still hadn't done up till now.
It's a bit of a monster now and is fairly bristling with gears, yet incredibly is still really smooth and easy to operate - maybe all that scribbling on the back of napkins paid off after all... or perhaps it's just pure blind luck helping me along...

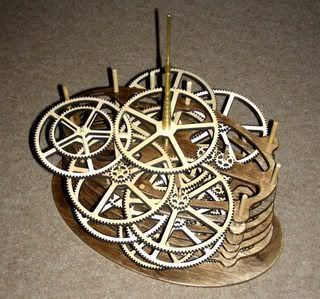

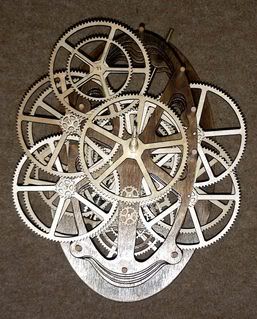

Anyhow, here are some pics of the gubbins in the box before the lid goes on.
Oh, and Happy New Year!!






 Smiley

« Last Edit: January 26, 2010, 01:09:06 am by Mechanism Man » Logged
Cubinoid
Zeppelin Captain
*****
United Kingdom United Kingdom


Cubinoid and Tixia Loxtonian

cubinoid
WWW
« Reply #60 on: January 26, 2010, 01:00:58 am »

Hmm, not sure about the switch on/switch off idea - think that it might be a bit at odds with the slow and smooth motion of the rest of the machine...   but...  you've got me thinking about electronics and stepper motors. I think that I could get away with a little hidden electronic cleverness for just one planet.
Just wish I had the first clue as to how to do it. I understand electronics like the average 5 year old understands the laws of nuclear fusion.
Time for a bit of research me thinks.
 Huh


Here's a thought - the amount of movement required would probably not be so great, so why not make it solar powered...you could fit a few solar cells to the "sun" for an interesting twist...even better, the solar energy could also be used to power up during the day and turn into a light at night?

You could adapt a sunjar, or a garden light...no real electronics expertise needed...

Find out how to make a sunjar here:
« Last Edit: January 26, 2010, 01:03:14 am by Cubinoid » Logged
Mechanism Man
Zeppelin Captain
*****
United Kingdom United Kingdom



« Reply #61 on: February 10, 2010, 09:20:54 pm »

I've now put the lid on, this will have the date and star sign graphic on it eventually, hence the wide edge. Top mechanism next!









 Smiley
Logged
Rowan of Rin
Zeppelin Admiral
******
Australia Australia

~The Black Blood Alchemist~


« Reply #62 on: February 11, 2010, 12:55:46 pm »

Now THAT is a prime example of how you use gears in Steampunk art! Fantastic as always MM. Can't wait until I have such skills; have you ever considered creating your orrerys out of other materials? Though I do realise that wood is your 'thing'  Wink
Logged

I'm as mad as I am, but no madder!
Live in Victoria? Check out the Victoria Meet Up Thread!
Mechanism Man
Zeppelin Captain
*****
United Kingdom United Kingdom



« Reply #63 on: February 11, 2010, 10:43:03 pm »

Thanks Rowan - still not sure if it's exactly steampunk, but there's certainly lots of gears... lots and lots of gears...
Yes, I have thought about different materials, but I'm simply not tooled up for anything other than wood, and I wouldn't know where to start if I were to build one from metal. I reckon it would look good in chunky stainless steel myself - brass has been done to death with orreries (it's the material of choice after all), but stainless, hmm, that would be quite something I think. But again, not really steampunk I'm afraid.
I've now got 5 commissions on the go, so I'm now sleeping and breathing wooden components and gear wheels, but the great thing is that the design has pretty much stopped evolving so I'm more or less there for producing proper plans. The delay has been in not really knowing how to go about drawing plans, and it also took a long time to pin down the design, but I've now hopefully solved both these issues... Hopefully...     Huh
Right, to the workshop!
Logged
Mechanism Man
Zeppelin Captain
*****
United Kingdom United Kingdom



« Reply #64 on: March 26, 2010, 12:03:57 am »

Finished!
Well here it is, my first 9 planet orrery with angled Earth and spinny orbiting Moon. Hmm, only 6 more to go.... This is beginning to take over my life...









TTFN my finely feathered friends.

 Smiley


« Last Edit: March 26, 2010, 12:50:10 am by Mechanism Man » Logged
Lawrence
Swab

United Kingdom United Kingdom


« Reply #65 on: September 27, 2012, 03:18:34 pm »

Hi Mechanism Man,

I work at the Open University in the Computing and IT department,  and i am managing the production of a new module called Algorithms, Data Structures and Comutability. We'd like to use  one specific photograph of your brass orrary mechanism in our module materials for our students.

This would be for educational purposes only, and if you agree i'd put our Rights department in contact with you to arrange clearance. If you are interested in assisting us please email me e.lawrence@open.ac.uk

Best regards,
Emma Lawrence
Logged
Drew P
Zeppelin Admiral
******
United States United States


« Reply #66 on: September 27, 2012, 11:54:50 pm »

Heya!
You might want to try to send him a private message thru his link below his avatar.
If that even works=that post is 2yrs old.
Logged

Never ask 'Why?'
Always ask 'Why not!?'
von Corax
Squire of the Lambda Calculus
Moderator
Immortal
*
Canada Canada

Prof. Darwin Prætorius von Corax


« Reply #67 on: September 28, 2012, 03:39:29 am »

His Etsy shop is still open, and it's definitely him — I recognize his work.
Logged

By the power of caffeine do I set my mind in motion
By the Beans of Life do my thoughts acquire speed
My hands acquire a shaking
The shaking becomes a warning
By the power of caffeine do I set my mind in motion
The Leverkusen Institute of Paleocybernetics is 5838 km from Reading
Siliconous Skumins
Server Monk
Governor
Rogue Ætherlord
****
United Kingdom United Kingdom



« Reply #68 on: September 28, 2012, 08:27:04 pm »

He was on the forum a few days ago, I've sent him a PM yesterday - depending on his profile settings he has probably received an e-mail notification.

SS
Logged

[Server Prayer]
Spoiler (click to show/hide)
Drew P
Zeppelin Admiral
******
United States United States


« Reply #69 on: September 29, 2012, 12:40:47 am »

Ah,good to know.
It's nice when members from a bit ago still contribute to this forum Smiley.
« Last Edit: September 29, 2012, 05:32:54 pm by Drew P » Logged
Mechanism Man
Zeppelin Captain
*****
United Kingdom United Kingdom



« Reply #70 on: September 29, 2012, 10:00:28 pm »

Hi all!
Yes I'm still here once in a while - just too busy at the moment finishing my last orrery to contribute much to the forum I'm afraid, and the forum posts change at such a huge speed these days you have to be here regularly to keep up.
But anyway, I digress. As for using a photo of my machine Emma, I have no problem with that at all. I'll e-mail you direct on the address you gave in the post to see how I can help.
The new machine I'm building is another 9 planet orrery, but this one will run real time via a powerful 1 rev per hour motor, a couple of worm drives, and lots and lots of gearing. The frames on this one are black, and the gears are silver - not a scheme I would have naturally gone for but it's working out really well - the guy in the States that ordered it obviously has much more vision and imagination than I do! Just the top mechanism still to do - woo hoo!
« Last Edit: September 29, 2012, 10:24:11 pm by Mechanism Man » Logged
Drew P
Zeppelin Admiral
******
United States United States


« Reply #71 on: September 30, 2012, 12:54:30 am »

Hello,Sir,beautiful work!!!
Logged
Lawrence
Swab

United Kingdom United Kingdom


« Reply #72 on: October 02, 2012, 10:02:08 am »

Thanks Machine Man, and the rest of you for your assistance.
I'll keep my eyes peeled for the email, but nothing as yet.
Best regards,
Emma
Logged
thetassiebfg
Deck Hand
*

« Reply #73 on: May 21, 2013, 12:30:42 pm »

Hi Mechanism Man

I am hoping that you will read this, I know this is an old thread but as i can not send a PM and feel starting a thread with a title such as ***Attention Mechanism Man*** (might be a little too over the top). I am posting as several times you have made comment about producing plans or revealing gear ratios for your stupendeous/marvelous/awesome orreries but I have not seen these anywhere. I am wondering if you ever reached the stage of being prepared to share these details  even if it was for a price. I would love to make one of these but don't have a clue where to start so would love to be able to draw on your experience.

in hope

Andrew
(I did try contacting you through your wooden locket store but it seems to no avail)

Logged
